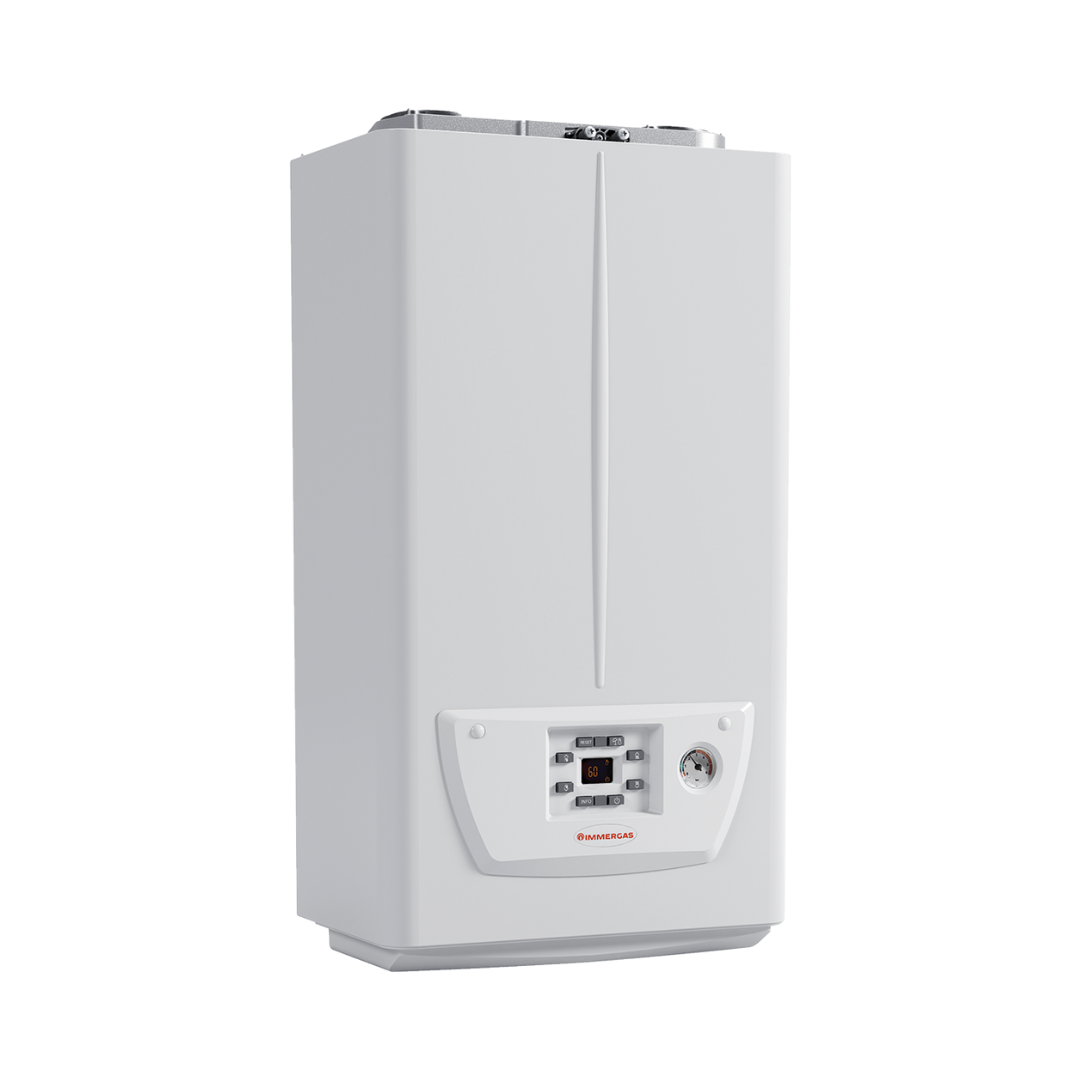

Instantaneous condensing wall-mounted boiler, characterised by DIN-type hydraulic connections and particularly compact dimensions.
The boiler is equipped with an “advanced” electronic board with electronic gas change (without replacing the nozzles) and a self-adapting combustion control system.

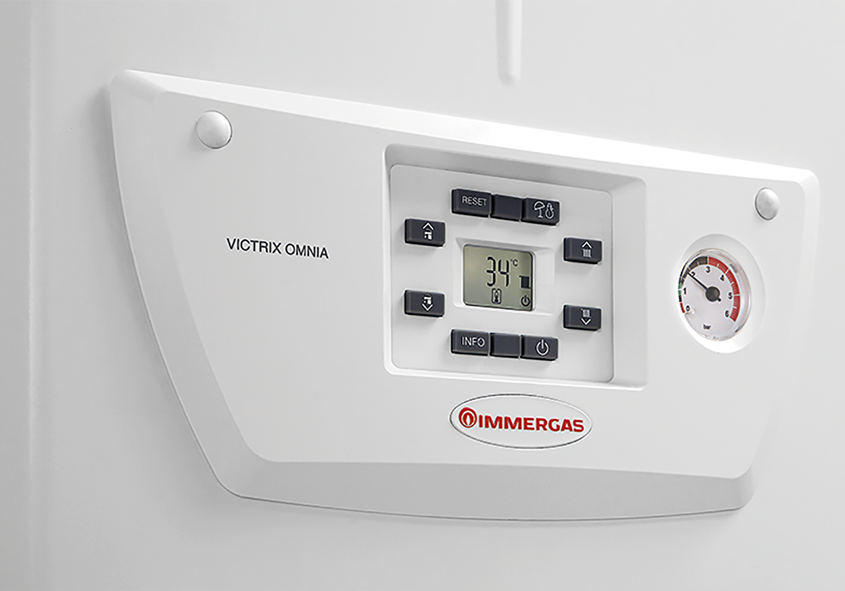

The boiler features an easy-to-use user interface with adjustment buttons and LCD display, offering the possibility of combining it with the exclusive CARV2 (modulating Remote Control) and the external probe (both optional) which allow you to manage, control and program the boiler remotely with extreme simplicity,
Technical Features
Model
Immergas Victrix Omnia 25 kW Condensing Boiler Complete with Flue Gas Exhaust Kit
Product Code: 3.028358
Energy Efficiency
Maximum nominal heat output in domestic hot water kW (kcal/h) 25.7 (22,117)
Maximum nominal heat output in heating kW (kcal/h) 20.8 (17,894)
Minimum nominal heat output kW (kcal/h) 4.2 (3,654)
Maximum useful thermal power in domestic hot water kW (kcal/h) 25.0 (21,500)
Maximum useful thermal power in heating kW (kcal/h) 20.2 (17,372)
Minimum useful thermal power kW (kcal/h) 4.1 (3,526)
Useful thermal efficiency at 100% Pn (80/60 °C) % 97.1
Performance
NOx Class 6
Heating temperature range ?C 20-85
Specific flow rate in continuous service of sanitary water (?t 30 °C) l/min 11.9
Minimum pressure (dynamic) sanitary circuit bar 0.3
Nominal heating expansion vessel capacity (total) litres 8 (5.8)
Electrical protection rating IPX 5D
Dimensions
Dimensions (HxWxD) 738 x 400 x 247 mm
General Features
VICTRIX OMNIA The new product with DIN connections, ideal for replacing old generators
In Italy, there are millions of independent boilers that are now close to being replaced, and over a third of them, not manufactured by Immergas, have DIN-type connections.
This is why Immergas created VICTRIX OMNIA: the boiler with the same DIN-type hydraulic and gas connections as the old generators, which makes installation easier, reduces assembly times and offers an excellent quality/price ratio.
Designed to comply with the new European Directives on energy use, VICTRIX OMNIA is an excellent total premix boiler, equipped with a condensing module with stainless steel coil.
Thanks to its extreme compactness, it offers a wide variety of installation solutions: indoors, built-in and outdoors in partially protected places.
Like all Immergas condensing boilers, VICTRIX OMNIA is class A and can benefit from the 65% Ecobonus when combined with an advanced thermostat such as the CARV2. An excellent opportunity for further savings.
HIGH HYDRAULIC PERFORMANCE
The primary heat exchanger that equips VICTRIX OMNIA is made with a single-tube stainless steel heat exchanger. The absence of manifolds and parallel circuits guarantees maximum reliability over time: there are no welds.
The single stainless steel spiral, without constrictions, allows for a perfectly balanced hydraulic circuit, significantly reducing pressure drops. The large, uniform internal cross-section limits deposits, reducing the risk of clogging if impurities are present in the water (for example, when replacing boilers on older systems).
For this reason too, VICTRIX OMNIA is ideal as a replacement.
ELECTRONIC AIR/GAS CONTROL
The electronic gas valve allows air/gas control via a multifunction electrode located inside the combustion chamber; the electronic board automatically adapts the combustion parameters in the event of variations in air or fuel density.
This allows the VICTRIX OMNIA to be powered by any type of fuel (methane/LPG or propane-based air) by simply modifying the electronic board software, even at a later date (for example, upon initial commissioning by an Authorized Service Center). The boiler is therefore supplied with a single product code.
CLASS A CIRCULATION PUMP
The low-consumption modulating circulator guarantees significant electricity savings compared to a traditional circulator. Furthermore, the presence of two NTC sensors on the flow and return lines allows for continuous modulation of operating conditions based on system requirements, increasing seasonal efficiency. The circulator can be set to operate with either proportional head or constant speed.
ADVANCED THERMOREGULATION

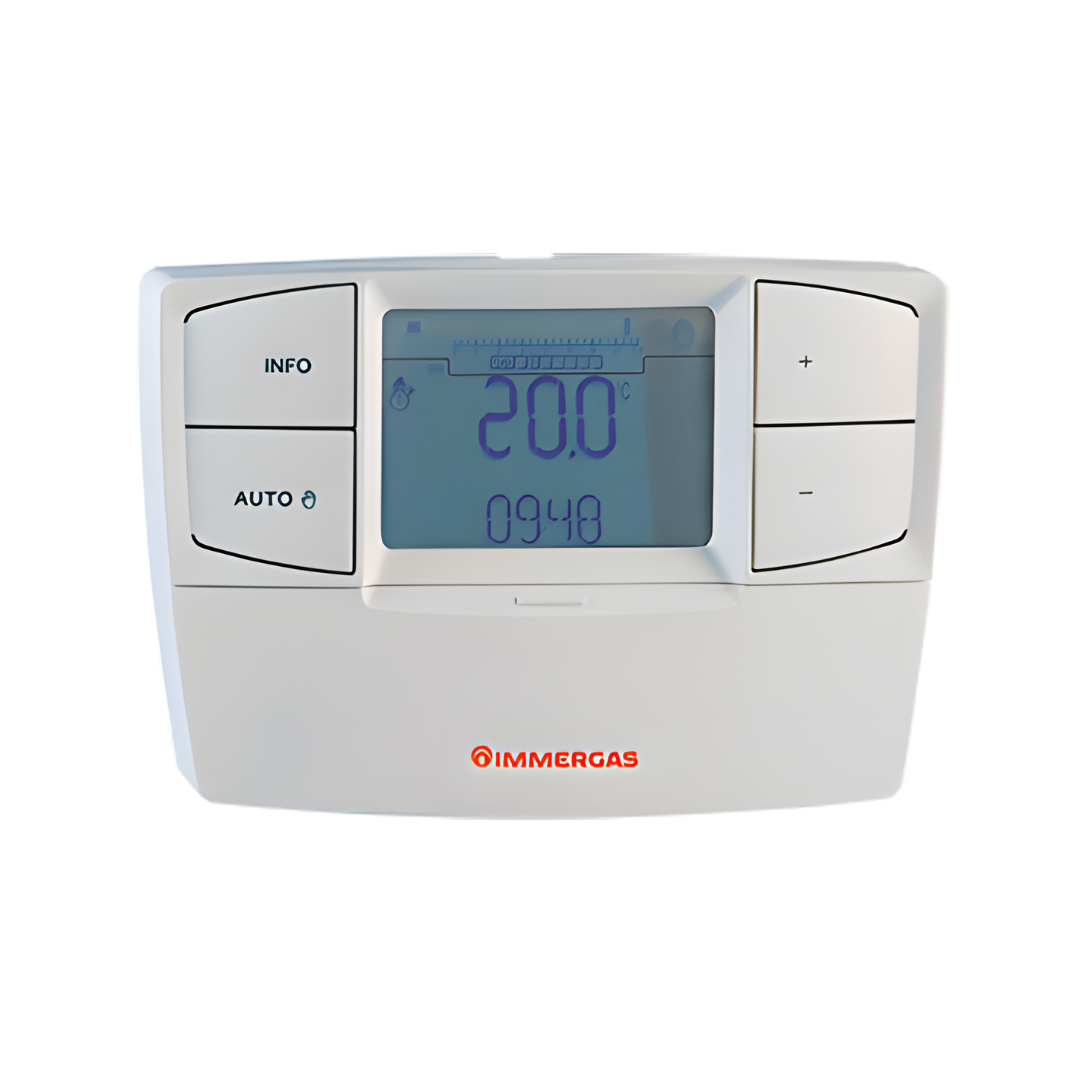

The appliance can be controlled remotely using a modulating thermostat (CARV2) with remote control of the boiler controls (optional, see page 14) which allows for better climatic regulation of the room temperature.
In fact, it replaces the boiler control panel, performing all its functions.
INDOOR AND OUTDOOR INSTALLATION
The range is approved for outdoor use, provided it is partially protected from the elements, for example by installing it under a balcony; the electrical protection rating is IPX5D. An electrical resistance kit is available to increase frost protection from -5°C to -15°C (code 3.017324).
The top cover kit for installation in partially protected places and for direct air extraction is optional (code 3.028415).
OPTIONAL CONNECTION GROUP FOR WALL-MOUNTED INSTALLATION
With DIN attachments code 3.029467.
BUILT-IN INSTALLATION
Built-in installation allows the boiler to be positioned outside in a niche, thus saving living space. The OMNI CONTAINER frame, code 3.016991, can be supplied and installed before the boiler.
The front door can also be painted the same color as the house to blend in nicely with the building's aesthetics. To install the boiler inside the OMNI CONTAINER, you need to use the optional support bracket.
