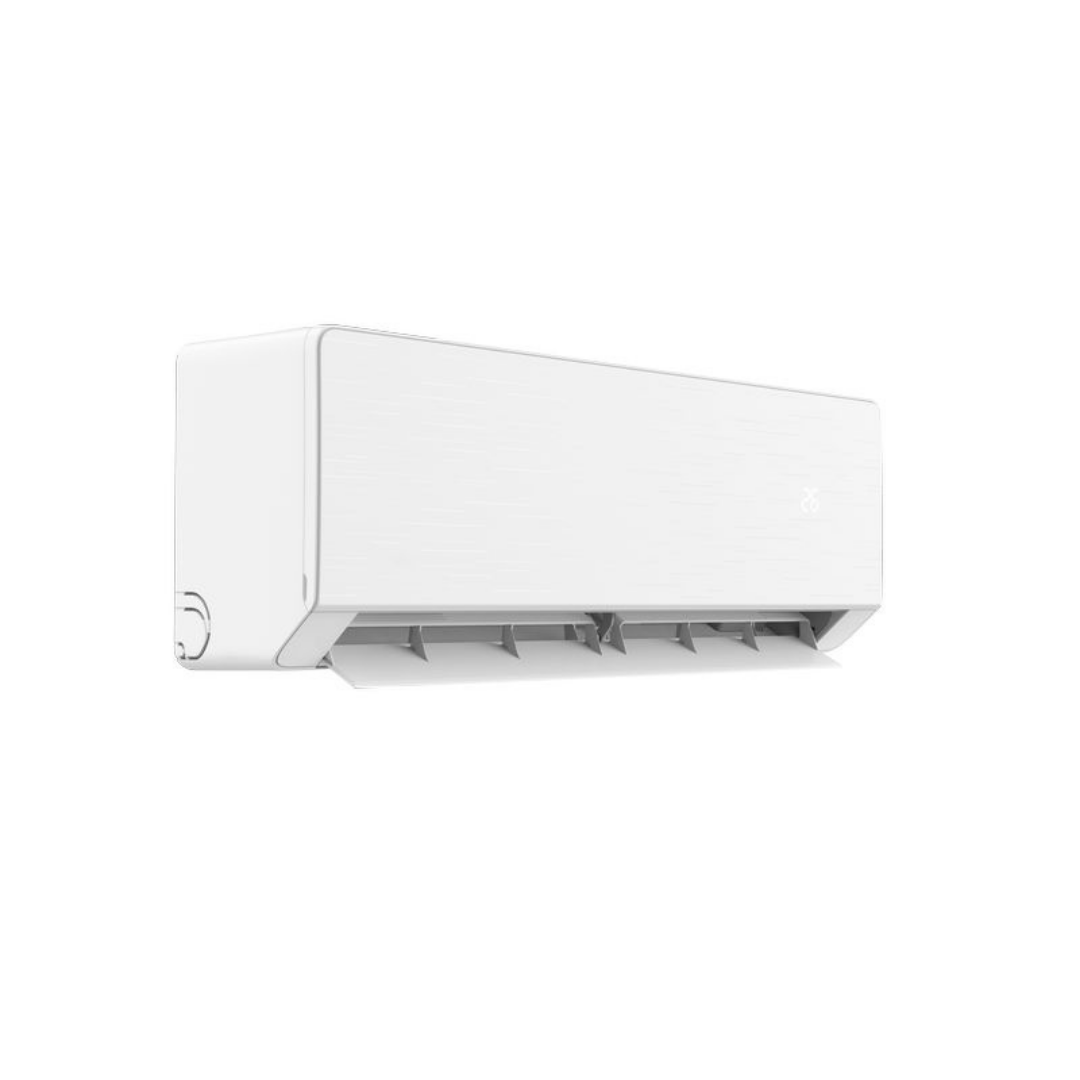

Ideal Clima Comfosplit Ikaro Hi-Wall HW Inverter 750 Fan Coil Wall Mounted Fan Coil Cod. THE07W Wi-Fi Optional - Control Included

Technical Features

Model

Ideal Clima Ikaro Series HW 750 Fan Coil THE07W Wall Mounted Fan Coil Unit with Control Included

Energy Efficiency

• Sensible cooling capacity W: 2720

• Water flow rate l/min: 9.67

• Pressure drop Ikaro HW kPa: 39

• Pressure drop for 2 or 3-way valves KVs=1.7 kPa: 13

• Heating power 45 °C (2) W: 4'229

• Water flow rate l/min: 12.1

• Pressure drop Ikaro HW kPa: 57.4

• Pressure drop for 2 or 3-way valves KVs=1.7 kPa: 20.3

• Air flow rate max. speed mc/h: 730

• Max. speed sound pressure (*) dB (A): 42

• Min. speed sound pressure (*) dB (A): 37

• Max. power consumption speed W: 42

Dimensions

General Features

IKARO

The Comfosplit IKARO HW Inverter hydronic terminal, for wall installation, is designed to ensure exceptionally quiet operation, ideal for residential environments. Thanks to its elegant aesthetics, a thickness of just 20 cm, and a high-efficiency heat exchanger, it can be installed in any space, both living and sleeping areas.

The ultra-quiet cross-flow tangential fan is controlled, in continuous inverter modulation, via a PID algorithm.

The casing, with a transparent LCD display, encloses the condensation collection tray and removable fine-mesh air filters. The hydraulic connections are 1/2” M. It accepts 3 clean input contacts for speed selection, and has a Modbus card, in addition to the infrared remote control as standard.

The IKARO HW series is designed for:

1. Heating, cooling, and dehumidifying environments, with important silent features for residential applications.
2. Deliver power with high efficiency at high as well as low flow temperatures (excellent for heat pump systems).
3. Compatible with both traditional and condensing boilers, solar systems, and heat pumps.

Thanks to the combination of PID modulating control technology, the latest generation cross-flow tangential fan, and the INVERTER module, it is able to achieve room comfort with industry-leading silence.

1. Hydrosilence technology for unparalleled acoustic comfort.
2. Cross-flow tangential fan.
3. Inverter motors with modulating technology and adaptive PID algorithm.
4. Universal wall installation, even with common gas split installation boxes (with internal height >10cm).
5. Wide range of accessories, such as 2 and 3-way kits that can be installed on the machine,
6. Numerous control options, from the standard remote control to Modbus connectivity and Integra Benessere.
