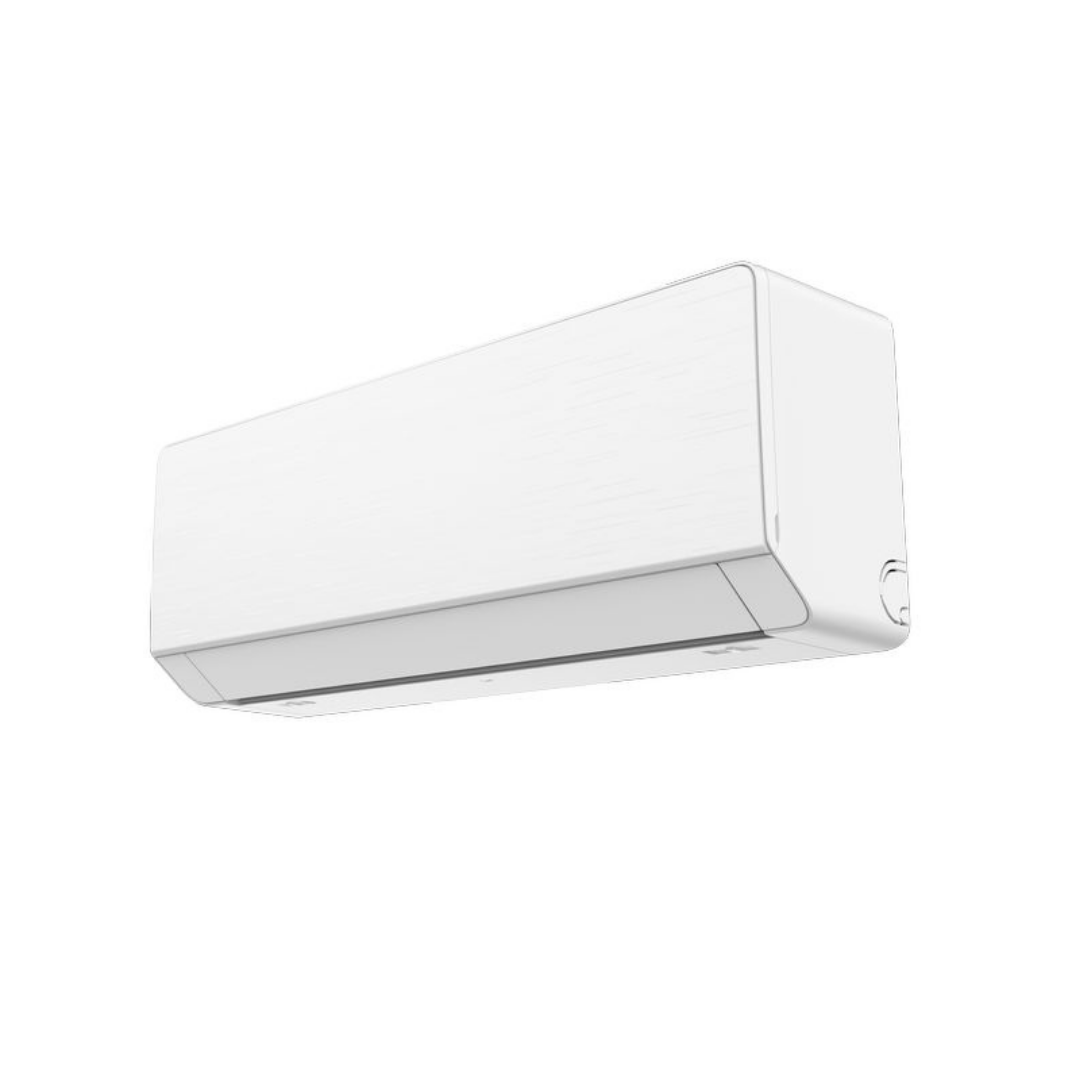

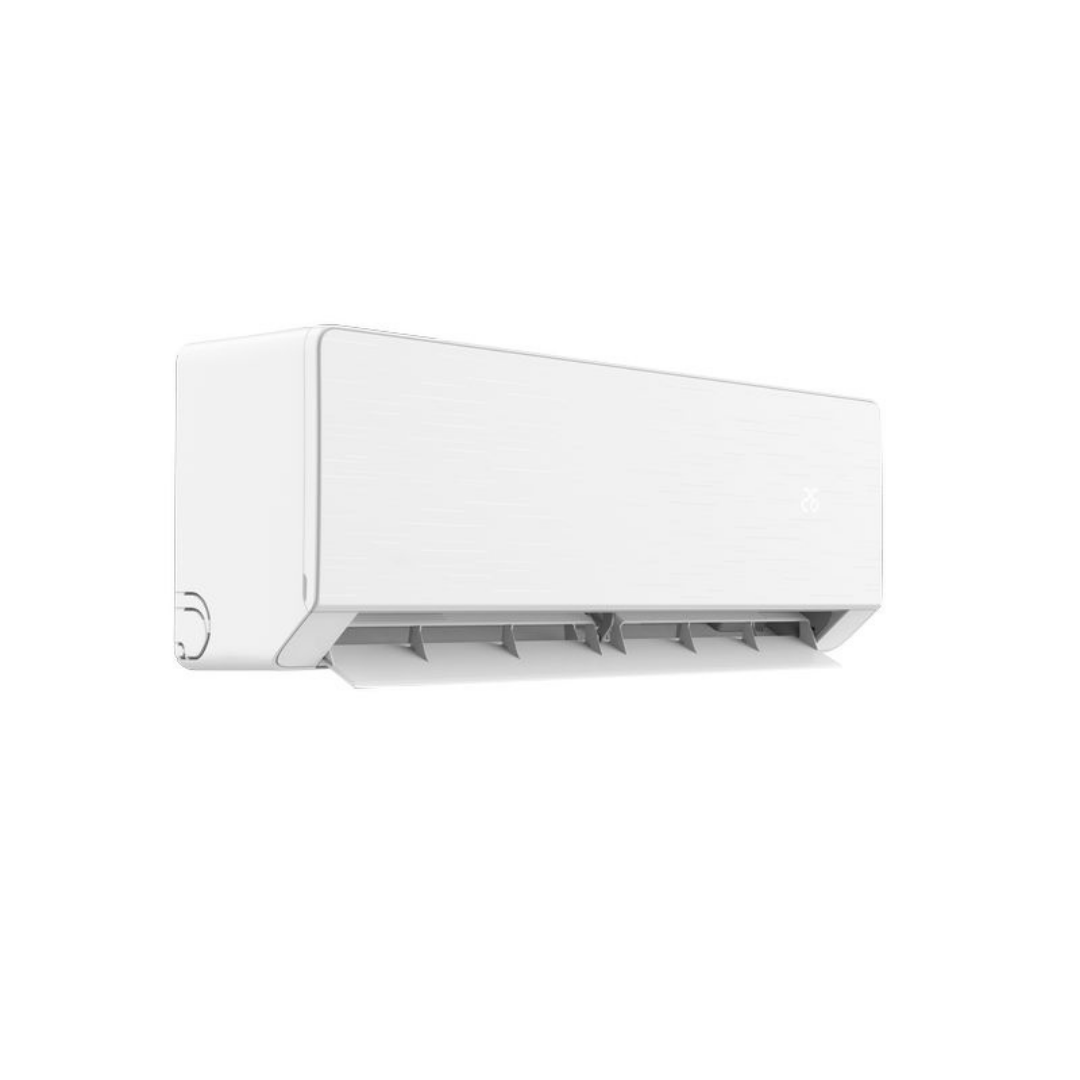

Ideal Clima Idrosplit Falko Hi-Wall HW Inverter 350 Fan Coil Wall Fan Coil Cod. THM03A - Control Included

Technical Features

Model

Ideal Clima Idrosplit Falko Hi-Wall Inverter 350 THM03A Wall-Mounted Fan Coil Unit with Control Included

Energy Efficiency

Total cooling power 7°C (1) W 1'730
Sensible cooling capacity W 1'418
Water flow rate l/min 5
Pressure drop only Falko HW kPa 10
Pressure drop 2 and 3 way valves KVs=1.7 kPa 5
Heating power 45 °C (2) W 2'198
Water flow rate l/min 6.3
Falko HW pressure drop kPa 15
Pressure drop 3-way valve KVs=1.7 kPa 7
Air flow rate max. speed mc/h 340
Max. speed sound pressure (*) dB (A)42
Sound pressure at medium speed (*) dB (A) 39
Min. speed sound pressure (*) dB (A)36

Dimensions

General Features

FALKO HYDROSPLIT



The new aesthetic concept of hydrosplit
Falko HW Inverter is the hydrosplit for wall installation.

Thanks to its elegant aesthetics, its thickness of only 20 cm and its high-efficiency exchange battery with tangential ventilation unit with extremely silent features, it can be installed in any environment.

Equipped with a digital control system with infrared remote control as standard. Complete with white casing and transparent LCD display, condensation collection tray and filter.

The FALKO HW series is designed for:
Heat, cool and dehumidify environments.
Deliver power with high efficiency at high as well as low flow temperatures (excellent for heat pump systems).
Compatible with both traditional boilers, as well as condensing boilers, solar systems and heat pumps.
Falko can be installed directly on the wall or using common built-in air conditioning installation boxes (with an internal height >10cm).
