Versatile and efficient, PK series pellet boilers heat your home in an eco-friendly and economical way, without compromising ease of use. Automatic cleaning systems reduce routine maintenance, while the PWM circulator and performance sensors optimize efficiency.
Built-in Wi-Fi lets you stay connected, even when you're away from home.
Technical Features
Model

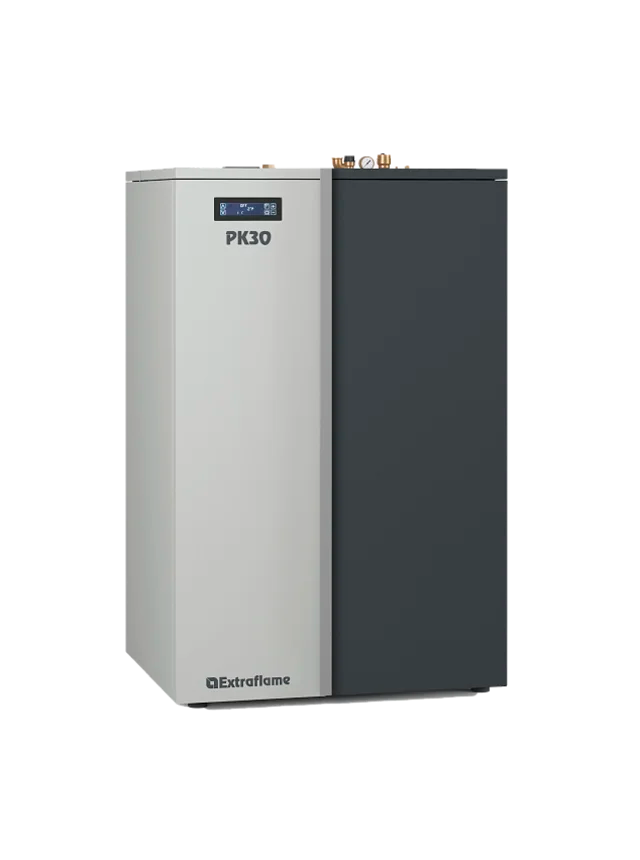

La Nordica Extraflame IDRO PK30 Pellet Boiler, 30 kW, Grey Color
- Product Code: 001202900
- Color: Light/Dark Grey
Main features
-
Type: High-power pellet stove
-
Energy class: A+
-
Environmental certification: 5 stars (DM186)
-
Yield: 92.4 – 92.7%
-
Nominal thermal power: 8.9 – 30 kW
-
Power output to water: 8.9 – 30 kW-H₂O
-
Heatable volume: 860 m³ (*)
Consumption and nutrition
Dimensions and weight
-
Width: 892 mm
-
Height: 1398 mm
-
Depth: 745 mm
-
Net weight: 310 kg
Smoke exhaust
(*) Indicative data, referring to a requirement of 30 kcal/h per m³ .
General Features
The versatile and efficient PK series pellet boiler heats your home in an environmentally friendly and economical way, without compromising ease of management.
Versatile and efficient, PK series pellet boilers heat your home in an eco-friendly and cost-effective way, without compromising ease of use. Automatic cleaning systems reduce routine maintenance, while the PWM circulator and performance sensors optimize efficiency. Integrated Wi-Fi allows you to stay connected, even when you're away from home.
Product Pluses
- Combustion chamber made of high thickness steel
- Cast iron fire pit and brazier
- Shell and tube heat exchanger with automatic cleaning
- Removable ash drawer
- Front tank loading
- Self-cleaning brazier with brushless motor
- Ceramic glow plug for quick ignition
- Circulator with PWM control
- Brushless gearmotor for pellet loading
- Pellet level sensor
- Probe in combustion chamber
- Thermal and water pressure safety devices
- 3 bar safety valve
- Expansion vessel
- Air vent
- Smoke exhaust outlet options: rear, left side
- Hydraulic connections on the upper part
- Wheels for easy movement
- Innovative adaptive system for regulating and maintaining constant combustion air over time
- Black Mask display with integrated Wi-Fi (“Total Control 2.0” app)
Functions
-
Self-regulation of the smoke extractor (encoder): Keeps the smoke motor revolutions constant to ensure correct combustion of the product
-
Tank safety thermostat: Always guarantees a high safety standard by preventing the product from overheating in the event of an anomaly
-
Self-balancing 1st and 2nd air: Primary and secondary air electronically balanced for optimal combustion and thermal efficiency
-
External room thermostat input: The product interfaces with the home temperature control devices (thermostats or contacts) to obtain the desired temperature in the rooms
-
Flue safety pressure switch: Checks correct smoke evacuation and, if necessary, blocks pellet loading, thus avoiding problems with the generator.
-
Chronothermostat: Chronothermostat with temperature control divided into four daily bands, for optimal management of the rooms
-
Automatic restart after blackout: The appliance automatically restarts following a power blackout, after having carried out the required check cycle
-
Clean combustion: Increases combustion efficiency and the life of parts subject to wear and, at the same time, reduces the need for ordinary cleaning of the brazier
