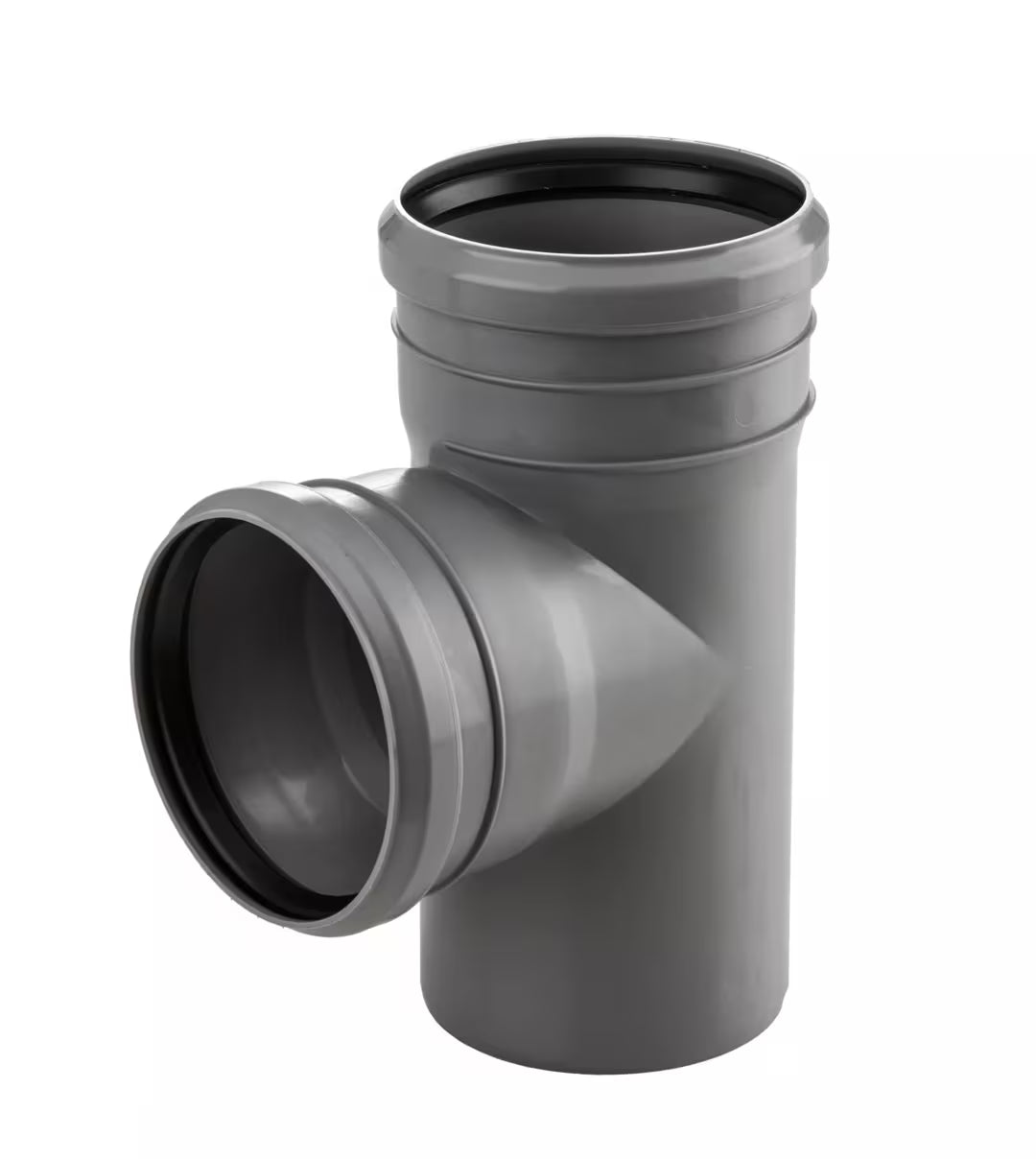

Wavin 87°30' Tee with PP ED TECH Connection Available in Various Diameters

PP ED TECH WAVIN

Technical specifications

ETIM Classification EC003025
Material connection 1 Polypropylene (PP)
Material quality connection 1 More
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Polypropylene (PP)
Material Quality Connection 2 More
Surface protection connection 2 Untreated
Surface treatment connection 1 Untreated
Material connection 3 Polypropylene (PP)
Material Quality Connection 3 More
Surface protection connection 3 Untreated
Surface treatment connection 3 Untreated
T-Element Model
90° angle
Flow Type No
Reducer No
Multipart Yes
System oriented Yes
Connection nominal internal diameter Other
Outer diameter, connection 1 32mm
Thickness, connection 1 1.8mm
Connection 1 Quick coupling (push fitting)
Outline code link 1 More
Nominal internal diameter of connection 2 More
External diameter, connection 2 32mm
Thickness, connection 2 1.6mm
Connection 2 Quick coupling (push fitting)
Outline Code Connection 2 More
Nominal internal diameter of connection 3 More
External diameter, connection 3 32mm
Wall thickness, connection 3 1.6mm
Connection 3 Quick connection (push fitting)
Outline code link 3 More
SBR sealing material
Suitable main color Grey
Connection length 1 49.5mm
Insertion depth 1 49.5mm
Connection length 2 45mm
Insertion depth 2 45mm
Connection length 3 45mm
Usable length of connection 3 45mm
Key opening 0mm
