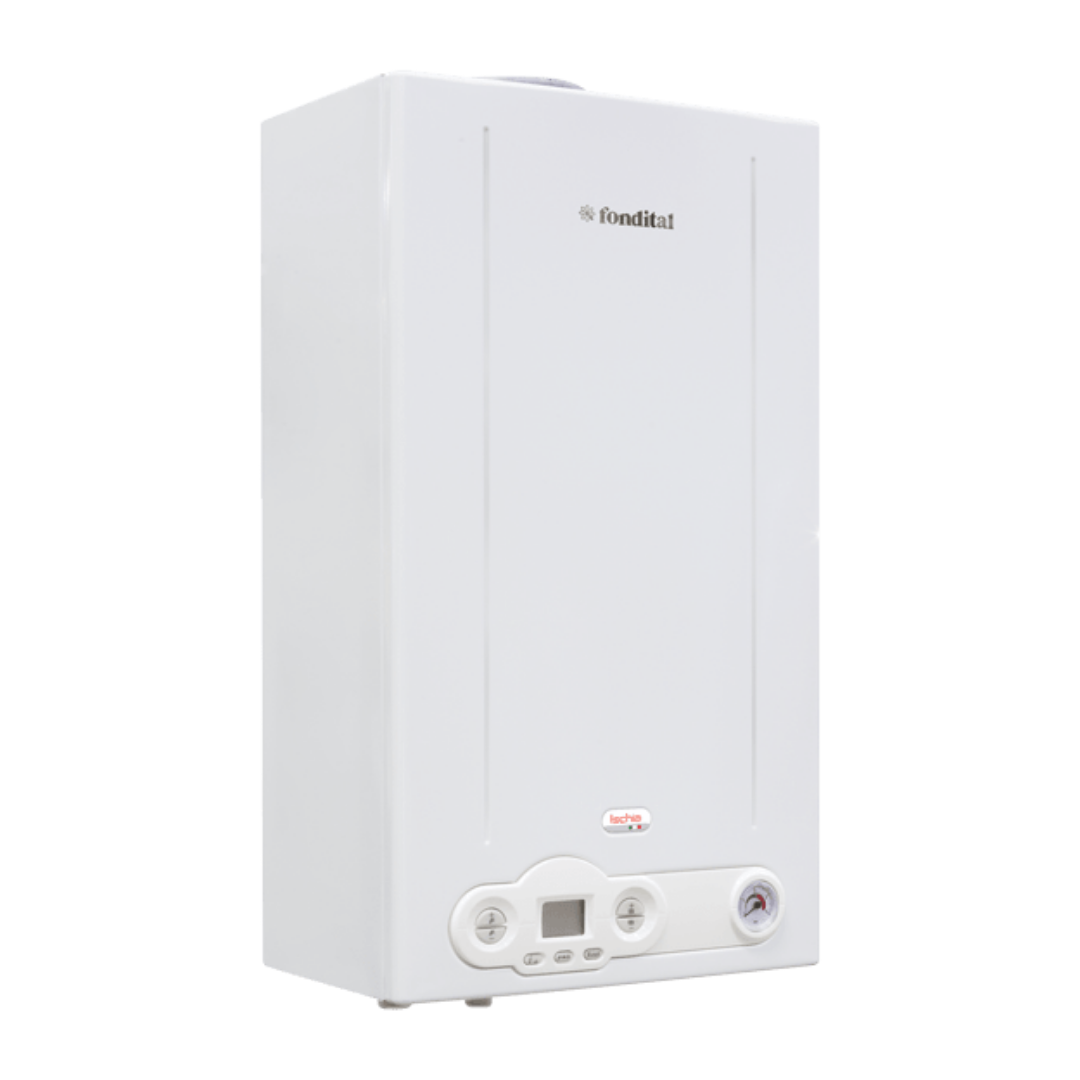

Fondital Ischia Pro Ctn 24 kW Methane Open-Chamber Boiler - Code KIHI02CN24

Technical Features

Model

Fondital Ischia Pro Ctn 24kW Methane Open Chamber Boiler

Product Code: KIHI02CN24

Energy Efficiency

Energy efficiency class in heating: C;
Energy efficiency class in Sanitary: B;
Product: XL;
Power supply: Methane Gas or Natural Gas (G20/21);

Performance

Nominal thermal power: 22 kW;
Seasonal space heating energy efficiency: 80%;
Water heating energy efficiency: 77%;
Nominal heat output: 24.5 kW;
Nominal thermal power (80-60°C): 22.3 kW;

Characteristics

Heating circuit operating pressure (min-max): 0.5-3.0 bar;
Heating temperature adjustment: 35-78°C;
Heating expansion vessel capacity: 7 L;
Operating pressure of the sanitary circuit (min-max) 0.5-6.0 bar;
Specific sanitary flow rate ΔT=30K: 9.3 l/min;
Sanitary water temperature regulation 35-57°C;
NOx emission class: 6;
Power supply voltage/frequency: 230/50 V/Hz;
Maximum power consumption (ERP): 57 W;
Electrical protection rating: IPX4D;

Dimensions

Width 400 mm;
Height: 700 mm;
Depth: 250 mm;
Weight: 25.50 Kg;

General Features

ISCHIA

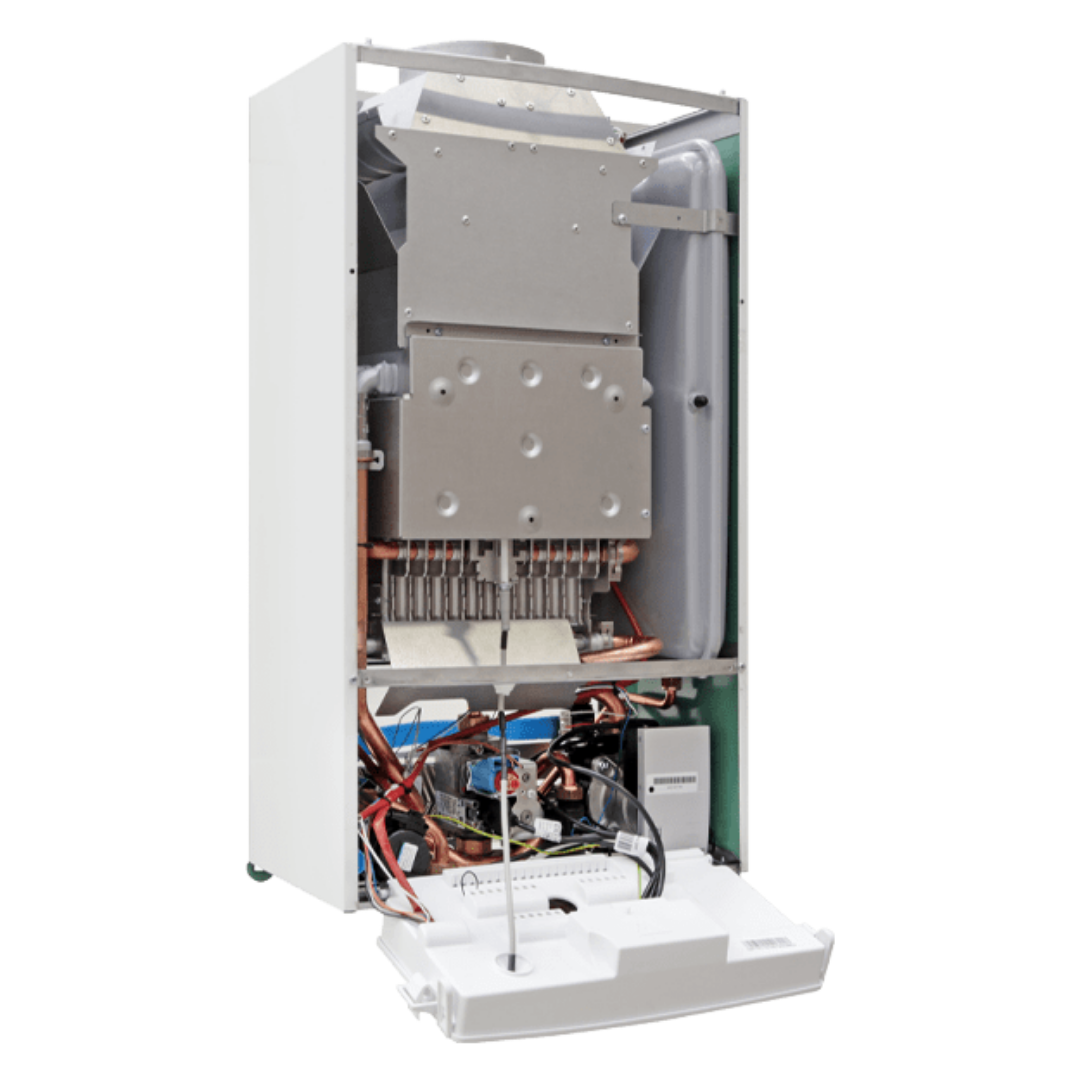

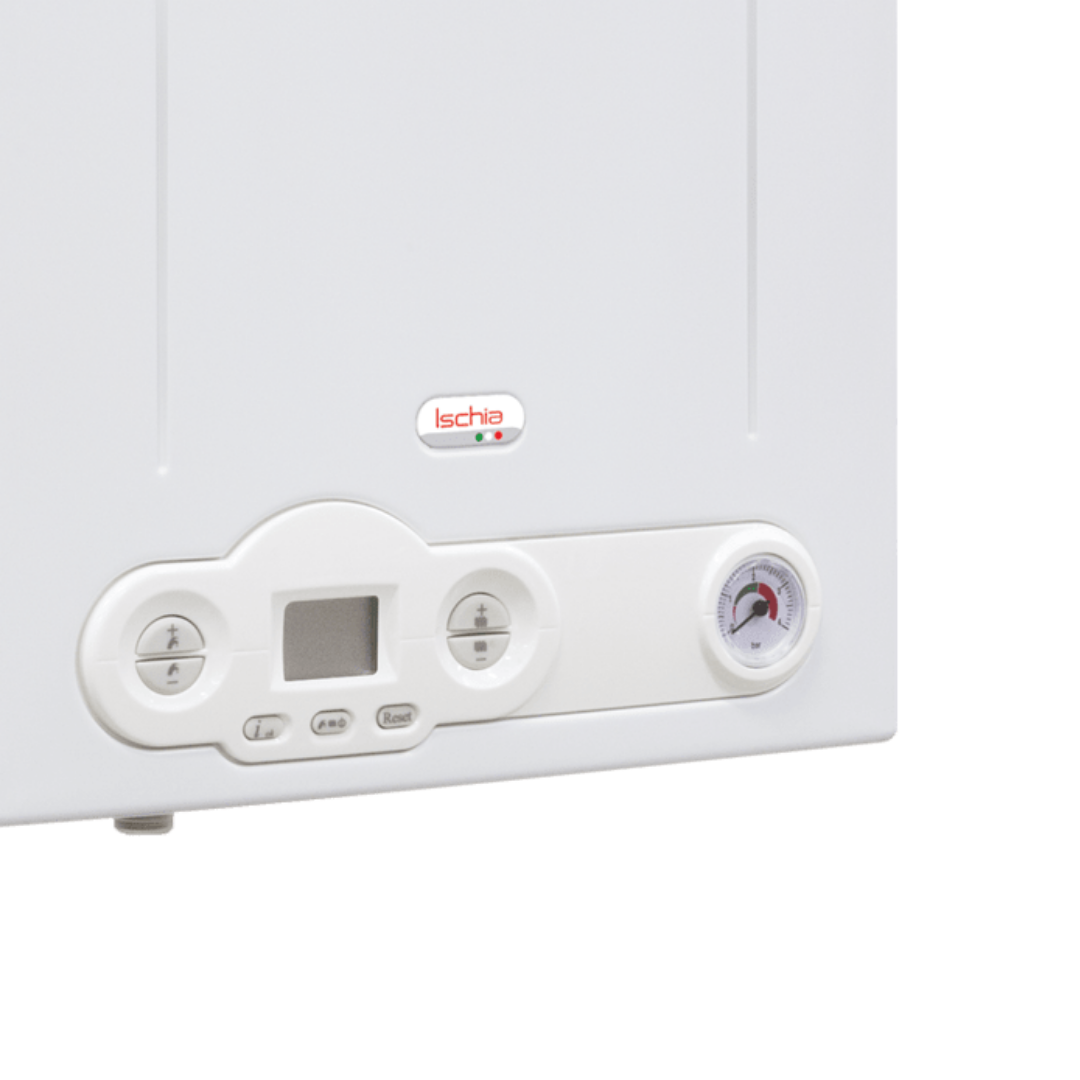

The Ischia PRO CTN boiler is designed for maximum comfort, featuring a high-efficiency monothermal stainless steel heat exchanger. The water-cooled, hyperstoichiometric atmospheric gas burner with low NOx emissions provides an extremely efficient product. Its ultra-compact design, with a profile of just 250 mm, allows for easy installation anywhere, and an LCD user interface with diagnostics allows for simple and intuitive boiler management.

Advantages:

- Hyperstoichiometric atmospheric gas burner, water-cooled, with low NOx emissions; - Ultra compact; - LCD user interface with diagnostics; - Room temperature regulation from the boiler with external probe; - Monothermal primary heat exchanger and 7-litre heating expansion vessel; - Multifunction relay for connection to systems with zone valves or solar systems or remote alarm signalling; - Stainless steel plate heat exchanger; - Hydraulic unit in composite material; - Anti-fast, anti-freeze, pump anti-block, pump post-circulation, chimney sweep functions; - NTC temperature probe on flow and return; - Provision for connection to Remote Control;
