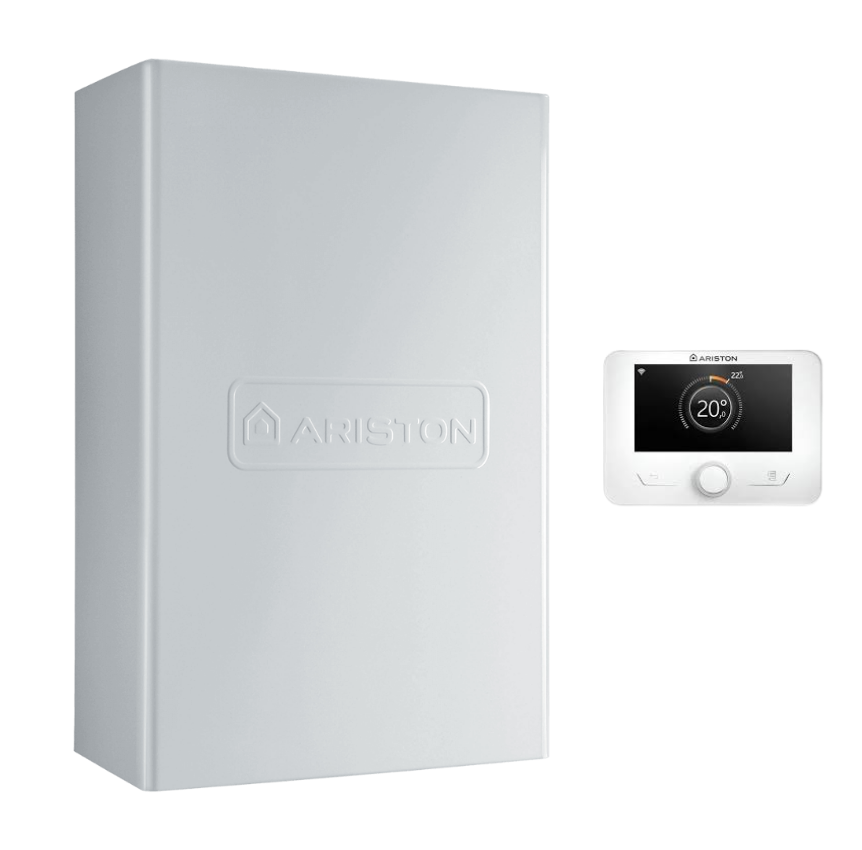

Ariston Cares Premium Ext 30 kW LPG Condensing Boiler for Outdoor Use, Code 3301230 - Complete with Flue Gas Exhaust Kit + Sensys HD

Technical Features

• Model

  Heating energy efficiency Class A
  XL profile sanitary energy efficiency Class A

• Energy Efficiency

  Nominal heat input max/min (heating) PCI: 29.0/6.0 kW
  Nominal heat output max/min (domestic hot water) PCI: 29.0/6.0 kW
  Max/min useful thermal power (heating): 28.4/5.8 kW
  Efficiency at nominal heat output (60/80°C) PCI: 97.8%
  Efficiency at nominal heat output (30/50°C) PCI: 104%
  Efficiency at 30% (30° C) PCI: 108%
  Max/min heating temperature (high temperature): 82-35°C
  Max/min heating temperature (low temperature): 45-20°C

• Performance

• Max/min sanitary temperature: 60-36°C
  Quantity of hot water (deltaT 25°C): 15.8 l/min
  Quantity of hot water (deltaT 35°C): 11.3 l/min
  Specific flow rate (first 10' with deltaT 30°C): 13.2 l/min
  minimum operating temperature (with antifreeze kit) -15°C
  Power supply voltage/frequency V/Hz 230-50
  Total absorbed electrical power: 82W
  Electrical system protection rating IP X5D

• Dimensions

  Dimensions mm (HxWxD) 770 x 505 x 240

General Features

CARES PREMIUM EXT



Characteristics

• Aluminum-silicon condensing exchanger

• Modulation ratio 1:4
• BusBridgeNet® communication protocol
• Sensys system manager and external probe as standard
• Minimum operating temperature down to -20°C*
• Electrogalvanized exterior cladding

• Flue pipe 80, 60 mm

• MET/LPG operation with standard kit (model 25)


HIGH EFFICIENCY

Product characterised by high energy performance, reduced consumption and polluting emissions.

SYSTEM MANAGEMENT
New communication protocol designed to ensure complete system management.

MODULATING CIRCULATOR
Modulating circulator for optimizing consumption and maximizing performance.

MADE IN ITALY
Produced entirely in Italy

AUTO FUNCTION
Maximum comfort, efficiency, and energy savings based on automatic analysis of environmental conditions, connected external devices, and required performance.

OUTDOOR INSTALLATION
Possibility of outdoor installation thanks to all the weather protection devices.

COMFORT FUNCTION
Speeds up the delivery of hot water in two modes: Comfort Plus Mode (always hot water in just 5") and Comfort Mode (hot water for 30' after the last draw).

EXTRA SMALL DIMENSIONS
Extremely compact size to fit any space constraint.
