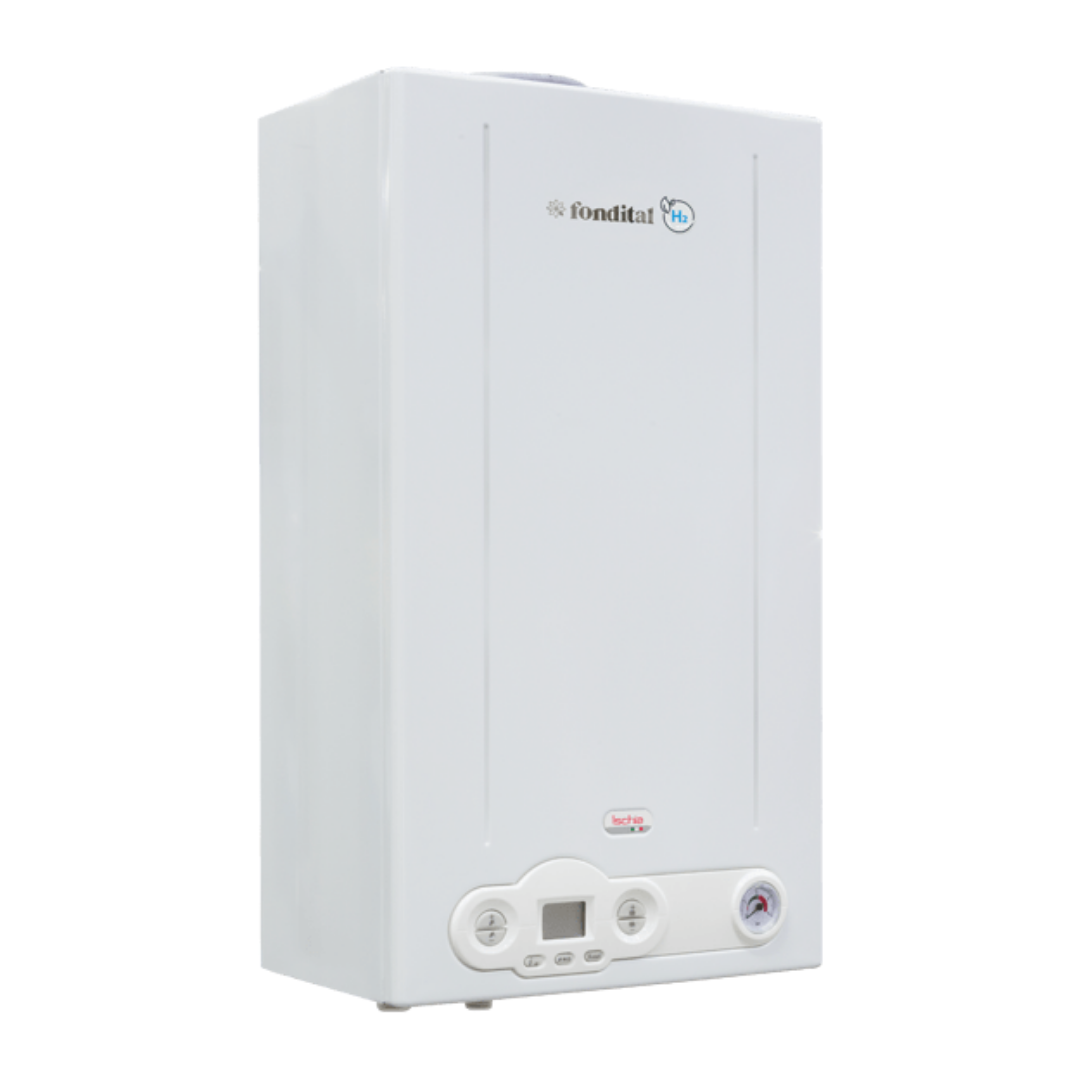

Fondital Ischia KC S 28 kW Methane Condensing Boiler, Code KIEI02KC28 - Complete with Flue Gas Exhaust Kit
Fondital Ischia KC S 28 kW Methane Condensing Boiler, Code KIEI02KC28 - Complete with Flue Gas Exhaust Kit
Click to open expanded view
SKU: IschiaKC28Smet_coass

Fondital Ischia KC S 28 kW Methane Condensing Boiler, Code KIEI02KC28 - Complete with Flue Gas Exhaust Kit

Price
1.122,00 €

+ Spese di spedizione: 40,00€
Extension of Technical Service
Extend your technical service for an additional 3 years after the standard 24-month warranty expires. | Info
Smoke Exhaust Kit: COAXIAL
In stock and ready for shipping
Fondital Ischia KC S 28 kW Methane Condensing Boiler, Code KIEI02KC28 - Complete with Flue Gas Exhaust Kit

Fondital Ischia KC S 28 kW Methane Condensing Boiler, Code KIEI02KC28 - Complete with Flue Gas Exhaust Kit

COAXIAL

1.122,00 €

+ Spese di spedizione: 40,00€
COAXIAL

TECHNICAL DATA SHEET

Product information

Wall-mounted condensing boiler with instantaneous domestic hot water production.

• High production of domestic hot water, more power during domestic hot water operation.

• Modulation ratio 1:9.

• Multifunction relay for connection to systems with zone valves or external pump management or remote alarm signalling.

• 9 litre heating expansion vessel.

• High-efficiency modulating circulator with built-in deaerator.

• Compact, only 250 mm deep.

• Certified for operation with hydrogen blends up to 20%.

Technical Features

Model

  • Ischia KC 28 S (METHANE)
  • Product Code: KIEI02KC28

Energy Efficiency

  • Nominal thermal power (Pnominal): 26 kW
  • Nominal heat input (Qn): 26.4 kW
  • Seasonal space heating energy efficiency (ηs): 92 %
  • Water heating energy efficiency (ηwh): 80%
  • Nominal thermal power (80-60°C) (Pn): 25.5 kW

Performance

  • Thermal power (50-30°C): 28 kW
  • Reduced thermal input (Qr): 3.3 kW
  • Useful efficiency at nominal flow rate (80-60°C): 96.7%
  • Useful efficiency at nominal flow rate (50-30°C): 105.9%
  • Useful efficiency at 30% (30°C return): 107.5 %

Characteristics

  • Heating expansion vessel capacity: 9 l
  • Nominal heat output in domestic hot water: 30.4 kW
  • Specific sanitary flow rate ΔT=25K: 18.0 l/min
  • NOx emission class: 6
  • Electrical protection rating: IPX4D IP
  • Energy class: A

Dimensions

  • Dimensions (LxHxD): 400x700x250 mm
  • Gross Weight: 33.5 kg



General Features

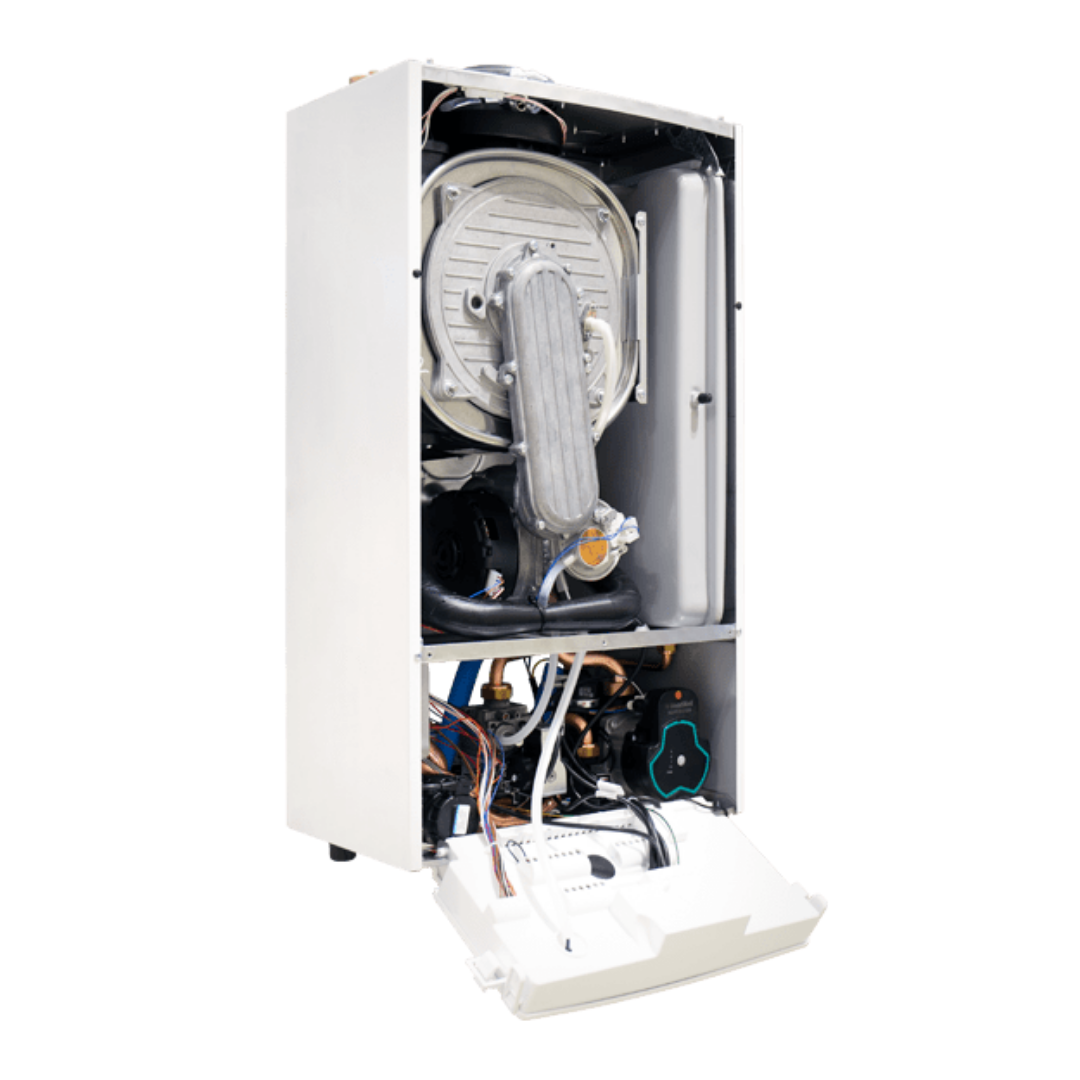

The Ischia KC is a sealed-chamber, forced-draught condensing boiler for producing hot water for heating and instantaneous domestic hot water production.

Available in 24 kW and 28 kW models.

PLUS

  • High production of domestic hot water, more power during domestic hot water operation (28 - 30 kW).
  • NOx emissions class 6.
  • Modulation ratio 1:9.
  • Multifunction relay for connection to systems with zone valves or external pump management or remote alarm signalling.
  • 9 litre expansion vessel.
  • High-efficiency modulating circulator with built-in deaerator.

TECHNICAL CHARACTERISTICS

  • LCD user interface with diagnostics.
  • Management of 2 types of solar thermal systems (with additional kit).
  • Thermoregulation with external probe (optional).
  • Compact, only 250 mm deep.
  • Provision for connection to the Remote Control (optional, supplied by the manufacturer).
  • Programmable parameters to adapt the boiler to the installation and alarm history.
  • Automatic bypass.
  • Heat exchanger in thermopolymers and stainless steel.
  • 3-speed circulator with built-in deaerator.
