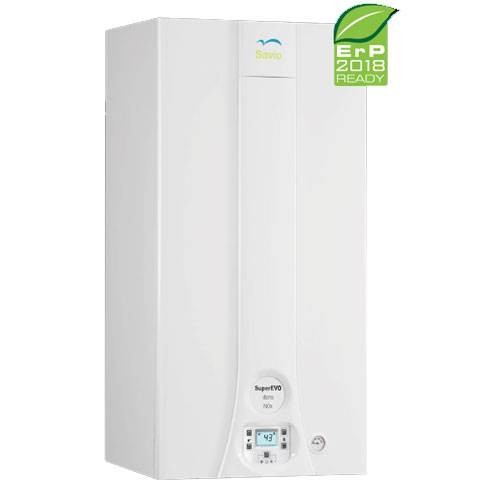

Savio SuperEVOdens Nox 24S Low Nox Methane Condensing Boiler with Complete Flue Gas Exhaust Kit

Technical Features

• Model

  Savio SuperEVOdens Nox 24S Low Nox Methane Condensing Boiler with Complete Flue Gas Exhaust Kit

• Energy Efficiency

  Heating energy efficiency Class B
  Class A health energy efficiency
  Sample profile: XL

• Performance

  Nominal heating/sanitary thermal capacity: 25 kW
  Maximum useful heating/sanitary power: 24.1 kW
  Return name 60°/80°C: 96.5%
  Efficiency at 30% load: 97.5%
  High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
  NOx Class 5
  Weighted NOx: 46 mg/kWh
  Minimum/maximum heating temperature: 60/85°C
  Minimum/maximum heating pressure 3.0/0.3 bar
  Expansion vessel capacity 10 l (total)
  Minimum/maximum sanitary temperature 35/55°C
  Maximum flow rate (ΔT=25 K)/(ΔT=35 K): 13.7/9.8 l/min
  Specific sanitary flow rate (ΔT=30 K): 12.3 l/min
  Voltage / Power at nominal heat output V~/ W 230/82
  IPX4D protection rating

• Dimensions

  Dimensions HxWxD 803x400x385; 42 kg

General Features

• SuperEVOdens NOx



  SuperEVOdens NOx retains the simplicity of management, programming, and adjustment of a traditional boiler, while leveraging the savings derived from heat recovery from flue gases from a condensing boiler. The heat recovery unit preheats the system water with the heat released by the flue gases, which in traditional boilers is dispersed into the environment. This energy recovery from the flue gases, at operating temperatures typical of radiator systems, allows SuperEVOdens NOx to achieve higher efficiency than traditional boilers. The water-cooled burner allows for high-efficiency combustion while limiting pollutant emissions.

  Characteristics:

  High yields (★★★★ compliant with yield directive 92/42 EEC and Legislative Decree 311/06)
  Water-cooled burner: class 5° NOx according to EN297

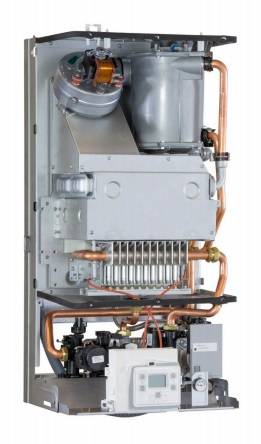

  Primary copper lamellar exchanger with large exchange surface and double circulation
  Aluminum heat recovery unit to exploit the heat from the flue gases and transfer it to the water
  Helical-shaped sanitary exchanger in 316L stainless steel with doubled surface area
  High efficiency pump with low energy consumption
  Digital control panel with backlit display
  Electronic board for:
  - Adjusting the re-ignition frequency
  - Adjustable primary circuit thermal inertia disposal
  - Circulator mode selection
  - Circulator anti-seize
  - Antifreeze safety
  - Chimney sweep function
  Modulating fan
  Integrated automatic bypass
  10 litre expansion vessel
  Immunity from radio interference
  Sanitary flowmeter
  Absolute heating pressure switch
  IPX4D protection rating
  Compatible with accessory solar kit


  High circulation primary exchanger and cooled burner

  The high-circulation primary exchanger is the distinguishing feature of the entire Savio SuperEVOdens NOx range. It facilitates the flow of water into the heating system and, thanks to its low hydraulic resistance, adapts the boiler to the system and facilitates heat transmission to the radiators.
  The burner is cooled by the water returning from the heating system.
  The burner is therefore characterised by a flame at a higher temperature
  Lower than traditional boilers, which reduces the production of nitrogen oxides. The flame shape, specific to the water-cooled burner, also provides a uniform flame with a reduced height.

  Heat recovery unit

  The heat recovery unit recovers heat from the flue gases before they are expelled and preheats the water sent to the primary exchanger. The unit is made of aluminum, features a finned coil that provides a large exchange surface area, and is equipped with a device to ensure the boiler properly drains condensate.

  Control Panel


  Summer / winter / off setting
  Heating temperature regulator
  Sanitary temperature regulator
  Gauge
  Fault diagnostics and block status displayed on the display
  Heating and sanitary temperature displayed on the display
  Reset button
  Easily accessible electrical connections
  Provision for external probe
  Remote control provision
