Chaffoteaux Inoa Green 25 kW Built-in Condensing Boiler, Code 3310578 - Complete with Flue Gas Kit

Technical Features

Model

Chaffoteaux Inoa Green Condensing Boiler 25 Kw Built-in Complete with Flue Kit

Product Code: 3310578

Energy Efficiency

Heating Energy Class A
Energy class in Sanitary A
XL load profile

Performance

Nominal heat output in heating max/min (Hi) 23.5/5.5 kW
Max/min heating power (80°C-60°C) Pn 23.5/5.5 kW
Max/min domestic hot water thermal power 22.9/5.3 kW
Maximum heat loss to the jacket (ΔT = 30°C) ****
Instantaneous quantity of hot water ∆T=25°C 13.1 l/min
Heating Circuit
Expansion vessel capacity 6.5 l
Min/max heating temperature (high temperature range) 35/82 °C
Min/max heating temperature (low temperature range) 20/45 °C
Electrical data
Power supply voltage/frequency 230/50 V/Hz
Minimum ambient temperature for use -15 °C
Electrical system protection rating IP X5D

Dimensions

HxWxD 1140 X 590 X 240 mm 24 Kg

General Features

INOA GREEN IN



Inoa Green In embodies the essence of condensing technology. Thanks to its built-in sheet metal unit (ordered separately), it's the ideal solution for saving living space while still ensuring ease of use thanks to the standard Expert Control. The condensing heat exchanger is made of aluminum alloy.

HEALTH COMFORT

Stainless steel sanitary exchanger.
Sanitary flow rate of 12 l/min (ΔT= 30°C) according to EN625 standard.

COMFORT IN HEATING

Efficiency up to 108% on PCI with energy savings up to 35%.
4 stars of combustion efficiency according to the EN 92/42 standard.
Useful thermal power up to 23.5 kW.
Modulation ratio 1:4.
Reduced pollutant emissions, NOx Class 6.
High-efficiency circulator with continuous modulation to improve acoustic comfort and reduce energy consumption.
Basic climate thermoregulation, based on the outside temperature.
The system manager allows you to set and view the operating mode, temperatures, self-diagnosis, adjustment information and history of recent faults.

COMFORT OF USE AND INSTALLATION

Mechanical filling on board the boiler.

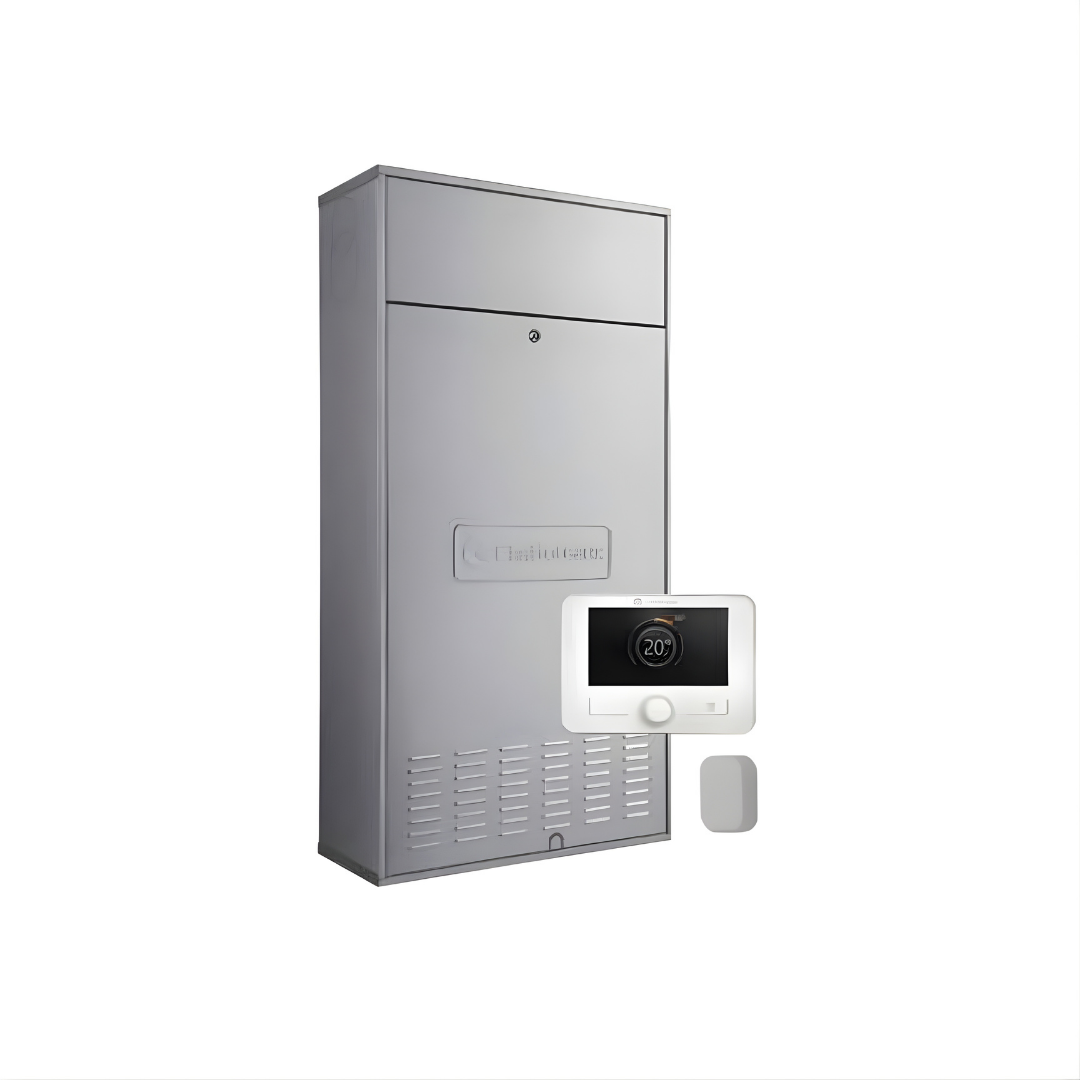

Expert Control system manager and external probe as standard.

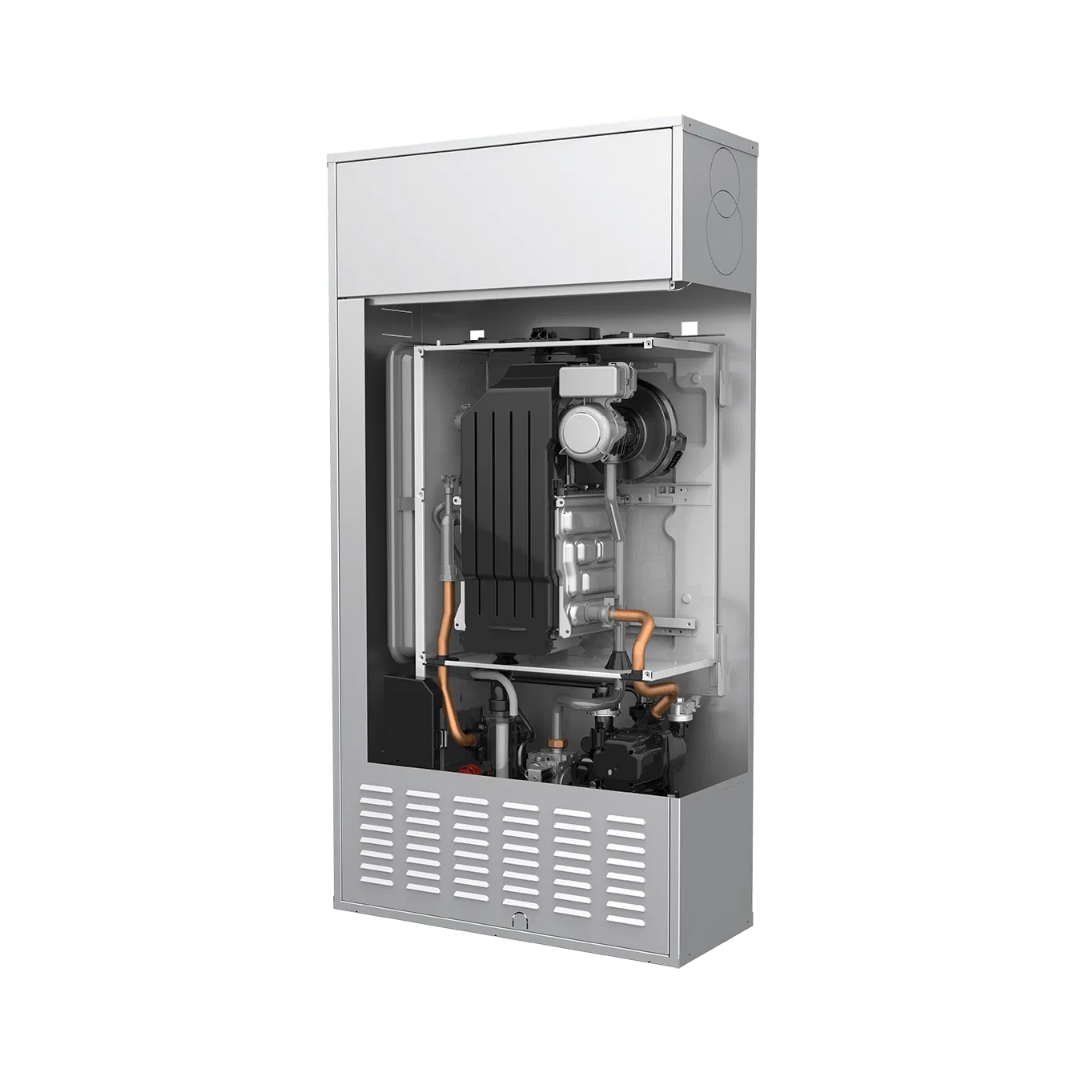

Universal built-in unit in electro-galvanized sheet metal with complete provisions for flue gas exhausts and hydraulic connections.
IPX5D electrical protection rating and guaranteed operation down to -20°C.
Designed for the management and integration of only natural circulation solar thermal systems.
