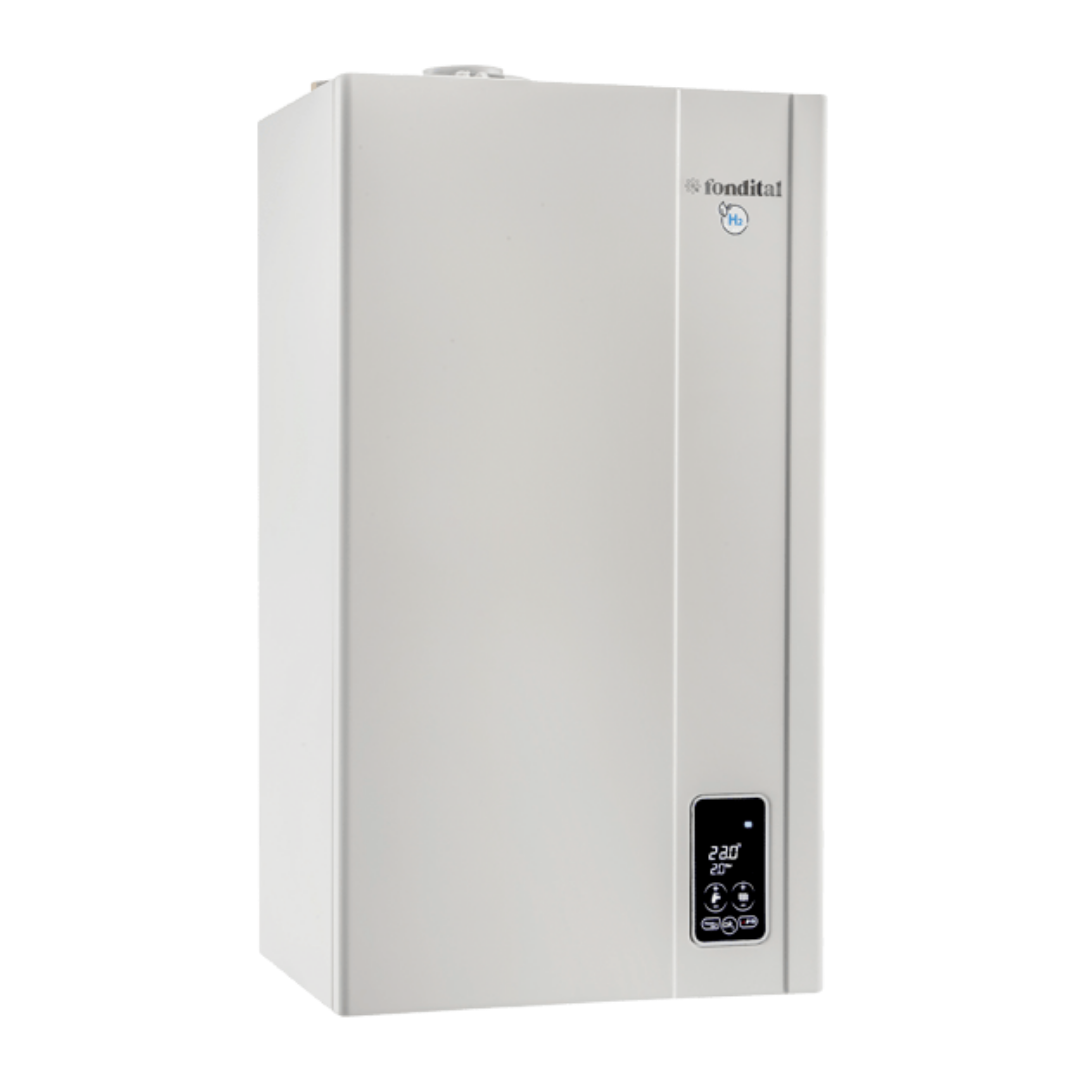

Fondital Formentera KC 32 ErP 29 KW Methane Condensing Boiler Code KFOI02KC32 - Complete with Flue Gas Exhaust Kit

Technical Features

Product Code: KFOI02KC32

Energy label specifications according to the European ErP directive

• Heating energy efficiency Class A
• XL profile sanitary energy efficiency Class A

Heating/sanitary operation features:

• Forced draft sealed chamber

• Nominal heat output: 30.4 kW

• Nominal thermal power: 32.3 kW

• Efficiency at maximum power: 96.8%

• Efficiency at 30% load: 106.2%

• Classification according to 92/42/EEC: ****

• NOx class (EN 297/EN 483); 5

• DHW production ∆t 30°C: 16.2 l/min

• Min-max sanitary pressure: 0.5 - 6 bar

• Maximum sanitary/heating temperature: 62/83°C

• Expansion vessel capacity: 10 litres

• Domestic hot water consumption at nominal power Methane m3/h 3.22

• Total absorbed electrical power: 99 W

• Degree of protection of the electrical panel: IPX5D

Dimensions

• Dimensions (HxWxD): 750x420x315 mm

• Weight: 40 kg

Characteristics

• Modulation ratio 1:9

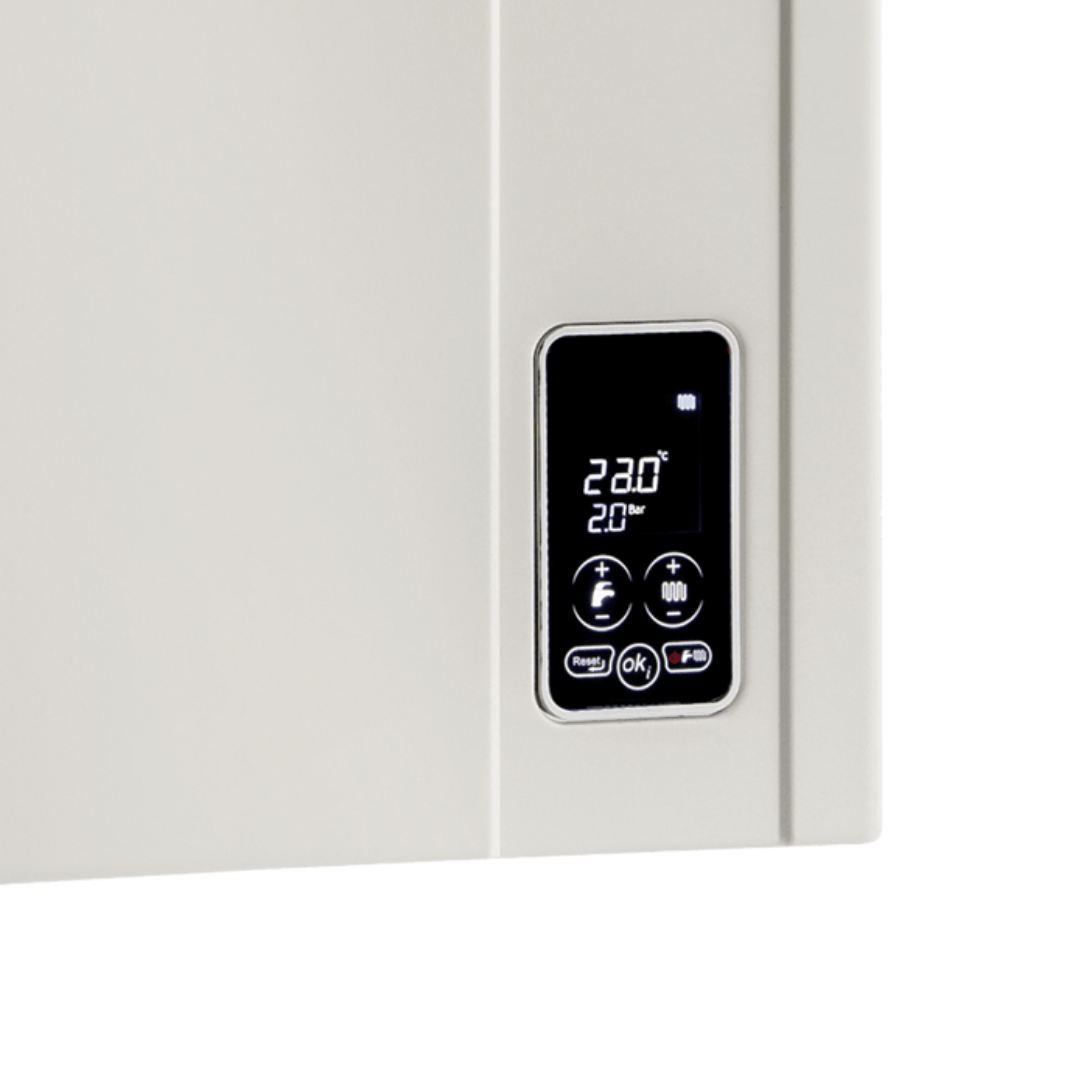

• Touch screen user interface

• Standard management of three types of solar thermal systems

• Room temperature regulation from boiler with external probe

• 26-plate sanitary exchanger

• Heat exchanger in thermopolymers and stainless steel

• Total premix burner

• Modulating gas valve with constant air/gas ratio

• Variable speed combustion fan

• 10-liter heating expansion vessel

• Multifunction relay for connection to systems with zone valves or solar systems or remote alarm signalling

• Health comfort function: ★★★

• Installation flexibility thanks to the IPX5D electrical protection rating

• Performance classification according to 92/42/EEC: ★★★★

• NOx emission class (EN 297): 5

• 3-speed circulator with built-in deaerator

• Availability of the boiler replacement kit as an accessory

• Motorized diverter valve

• External probe

• Open Therm Remote Control
• High and low temperature zone heating management card
