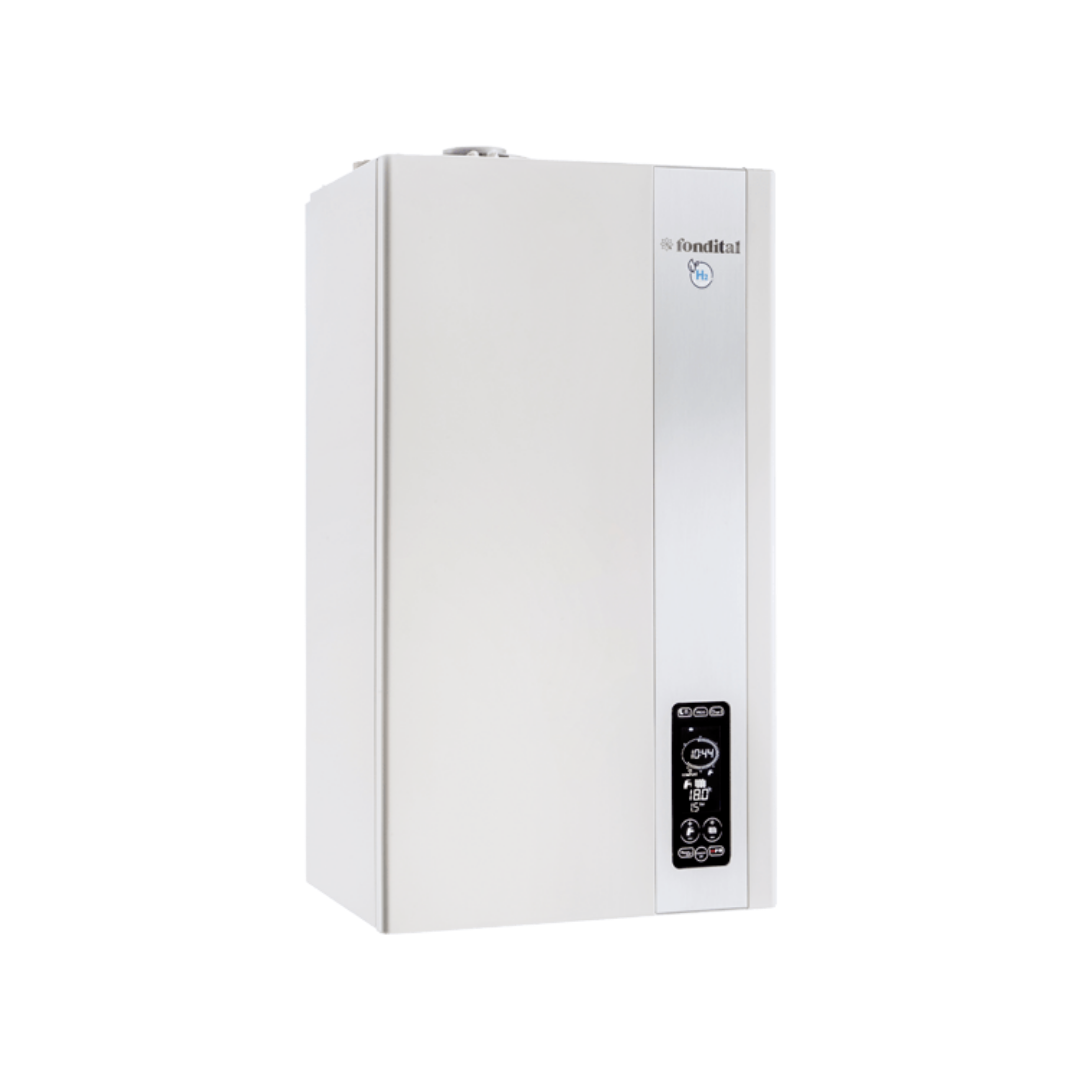

Fondital Itaca KC 32 ErP Methane Condensing Boiler 32 kW Code KITI02KC32 - Complete with Flue Gas Exhaust Kit

Technical Features

• Model

  Heating energy efficiency Class A
  XXL profile sanitary energy efficiency Class A
  Forced draft sealed chamber
  Nominal heat output: 30.4 kW
  Nominal thermal power: 32.3 kW
  Efficiency at maximum power: 96.8%
  Efficiency at 30% load: 108.3%
  Classification according to 92/42/EEC: ****
  NOx class (EN 297/EN 483); 5
  DHW production ∆t 30°C: 16.2 l/min
  Min-max sanitary pressure: 0.5 - 6 bar
  Maximum sanitary/heating temperature: 62/83°C
  Expansion vessel capacity: 10 litres
  Heating consumption at nominal power Methane m3 /h 3.22
  Domestic hot water consumption at nominal power Methane m3/h 3.65
  Total absorbed electrical power: 99 W
  Degree of protection of the electrical panel: IPX5D
  METHANE power supply
  Warranty: 2 years

• Dimensions

  W x H x D 420x750x315 mm; 40kg

General Features

• ITHACA KC


Itaca KC is a wall-mounted premix condensing boiler with instantaneous production of domestic hot water in a sealed chamber.

The boiler is equipped with a "domestic hot water comfort" function that keeps the plate exchanger warm for a faster response in case of a request for domestic hot water.

Plus:

Modulation ratio 1:9

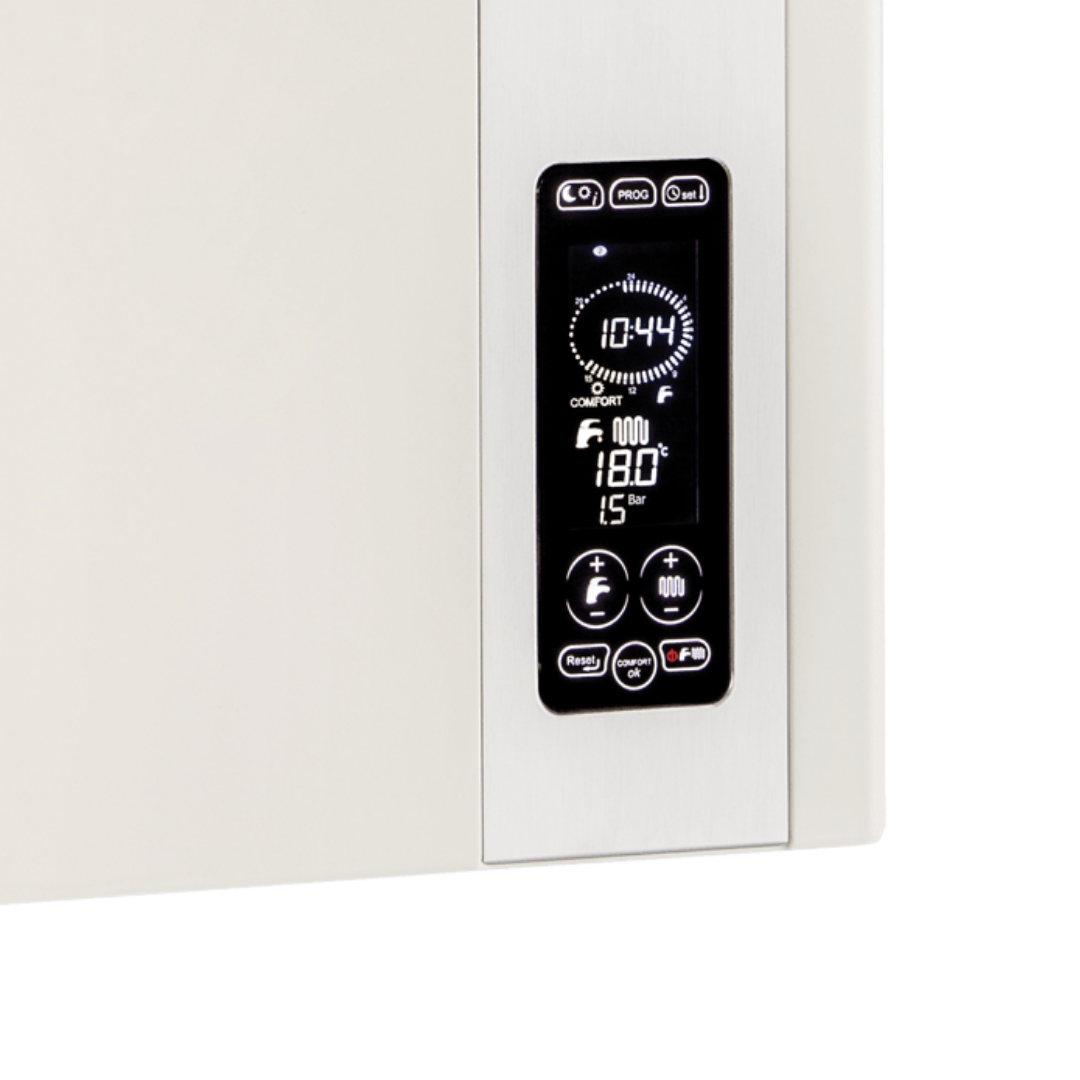

Touch screen user interface
★★★ ACS comfort
Modulating circulator
Standard management of 2 heating zones with room temperature probes
Standard management of 2 types of solar thermal systems

Characteristics:

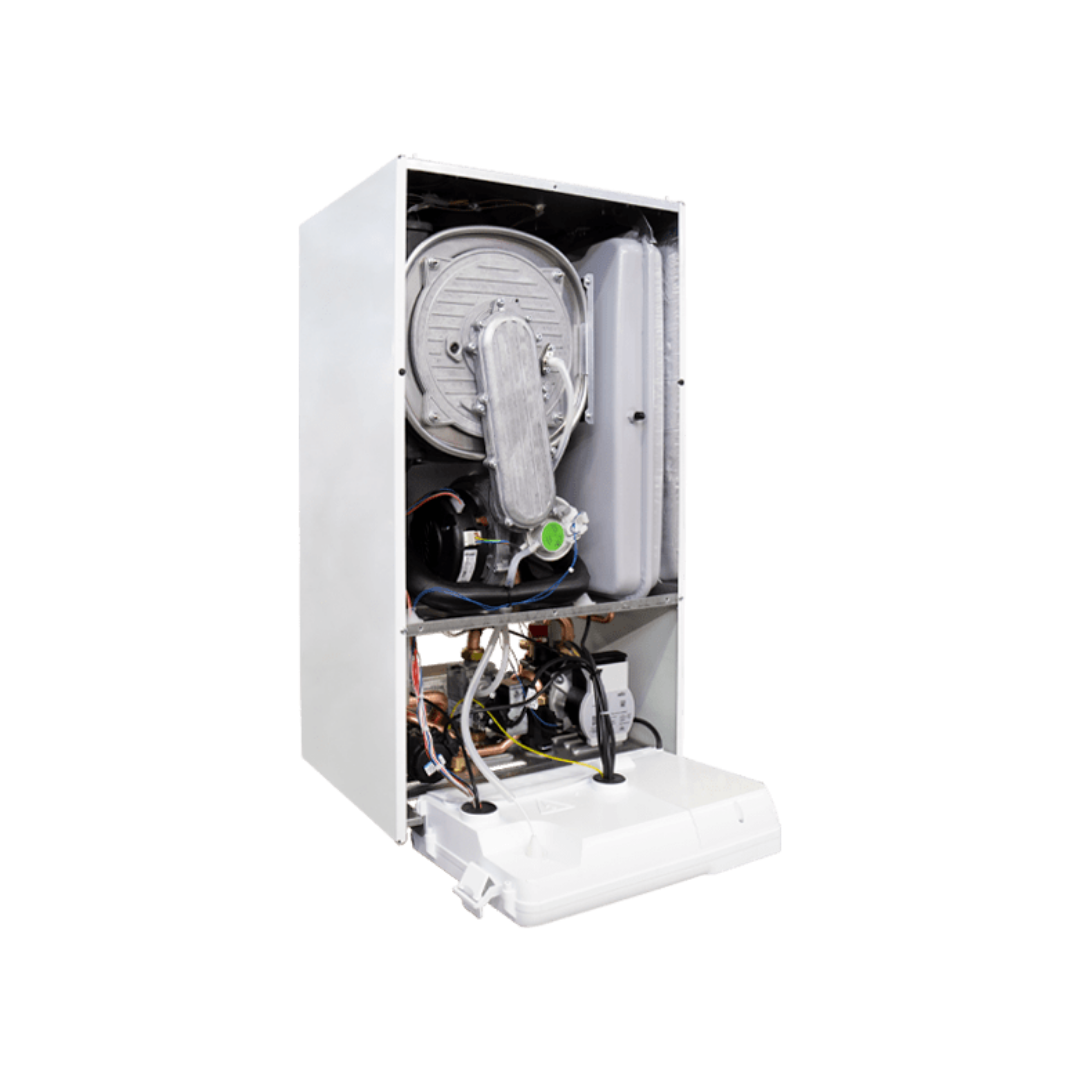

Heat exchanger in thermopolymers and stainless steel
Total premix burner
Modulating gas valve with constant air/gas ratio
Variable speed combustion fan
Modulating circulator with built-in deaerator
10-liter heating expansion vessel
Thermally insulated stainless steel plate heat exchanger
Provision for connection to GSM modem for remote switching on/off and display of anomalies (optional)
Multifunction relay for connection to systems with zone valves or solar systems or remote alarm signalling
Health comfort function: ★★★
Double loading system: automatic and manual
Installation flexibility thanks to the IPX5D electrical protection rating
Performance classification according to 92/42/EEC: ★★★★
NOx emission class (EN 297): 5
Availability of the boiler replacement kit as an accessory
Wide modulation range 1:9
Electronic ignition, ionization flame detection
NTC temperature probes for sanitary and heating systems
Motorized diverter valve
Bypass

Provision for connection to:

External probe
2 room probes
Open Therm Remote Control
High and low temperature zone heating management card
