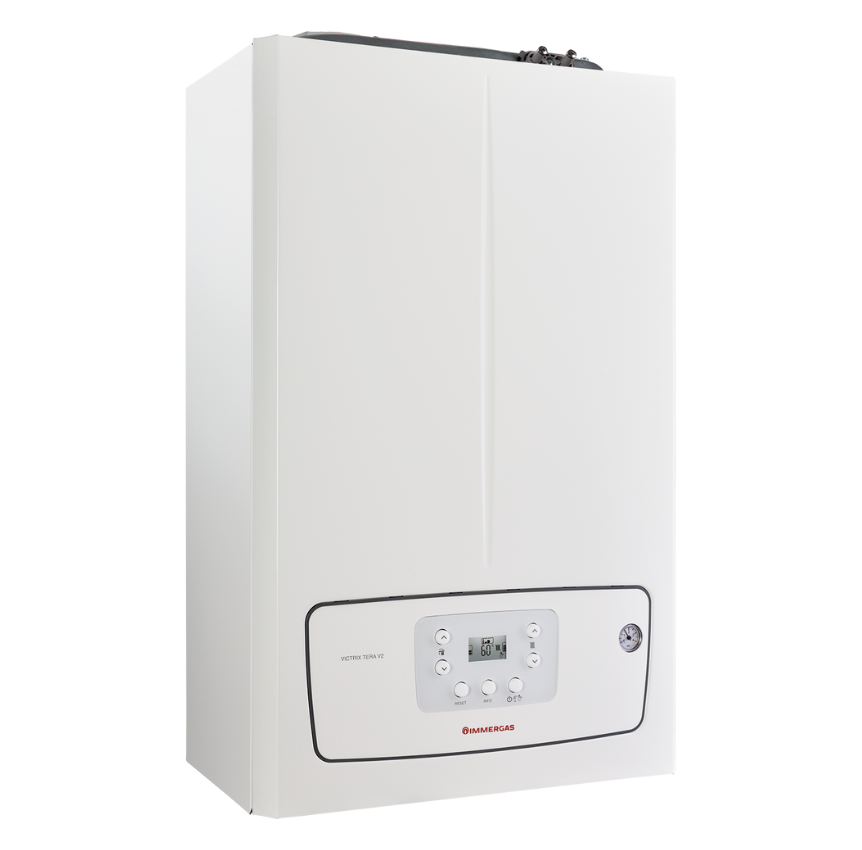

Immergas Condensing Boiler, Heating Only, Victrix Tera V2 PLUS 24 kW, Methane, Code 3.032929 - Complete with Flue Gas Exhaust Kit

Technical Features

Model

Immergas Victrix Tera V2 24 kW Methane Condensing Boiler

Product Code: 3.032929

Product Plus

• HYDROGEN READY 20%

Energy efficiency

• Heating energy class: A


Performance

• Useful heating power: 24.1 kW

• Useful domestic hot water power: 28.3 kW

• Modulation range: 18 – 100 %


Typology

• Heating Only

Dimensions and Weight

• Dimensions (HxWxD): 748 x 440 x 253 mm

Energy Efficiency

• Maximum nominal heat output in domestic hot water: 28.7 kW
• Maximum nominal heat output in heating mode: 24.5 kW
• Minimum nominal heat output: 4.5 kW
• Maximum useful thermal power in domestic hot water: 28.0 kW
• Maximum useful thermal power in heating: 24.0 kW
• Minimum useful thermal power: 4.3 kW
• Thermal efficiency at 100% Pn (80/60 °C): 97.5 %
• Thermal efficiency at 100% Pn (40/30 °C): 108.0 %
• Useful thermal efficiency at 30% of the nominal load (with return temperature of 30 °C): 109.6 %
• Adjustable heating temperature: 20-85°C
• Adjustable domestic hot water temperature: 30-60°C
• Gas flow rate to the burner (methane) max/min: 3.04/0.48 m3/h
• Weighted CO: 16.1 mg/kWh
• Nox Class: 6

• Heating expansion vessel capacity: 8.0 litres

• Electrical protection rating: X5D IP
• Weight of boiler full of water (empty): 37.6 (31.2) kg

General Features

PLUS VERSION WITH KETTLE

VICTRIX TERA 24 PLUS V2 can be used as a boiler for room heating only or connected via an optional kit to a boiler unit for the production of domestic hot water.

IDEAL FOR MULTIPLE WITHDRAWALS OF HOT WATER
For large domestic hot water needs or for multiple simultaneous withdrawals, combination with a separate boiler unit is possible with models from 80 up to 2000 litres.

COMBINATION WITH SOLAR THERMAL SYSTEMS
Boiler units with a capacity of 120 liters or more are designed for use with forced circulation solar thermal systems, including the UB INOX SOLAR 200 V2 version with an integrated solar circuit. The VICTRIX TERA 24 PLUS V2 boiler can be connected to the entire range of Immergas Solar Solutions.

The TERA V2 range is already known for its remarkable installation flexibility ; thanks to its small overall dimensions: it can in fact be placed inside homes, outside in partially protected places or built-in or in technical cabinets even in hybrid configurations .

VICTRIX TERA V2 boilers fall into class 6, the most ecological in the European classification, for low nitrogen oxide (NOX) emissions.

MODERN AESTHETICS

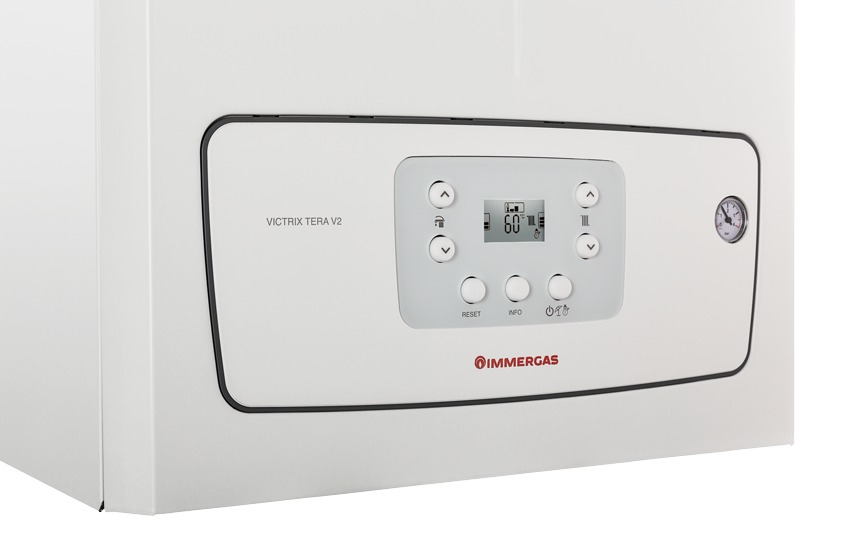

White dashboard aesthetic cover with grey border and glossy user interface (glass effect) equipped with buttons for making adjustments and a central display for viewing the boiler operating parameters.

Silver-grey screen prints and symbols. The lower grille covering the connections is standard.

INDOOR AND OUTDOOR WALL INSTALLATION
The compact size allows the boiler to be easily placed inside the home or outside the building in a partially protected area, with the upper cover kit (code 3.032844).

Same wall installation template and same connection distances as models in the previous TERA range, to facilitate replacement operations.
