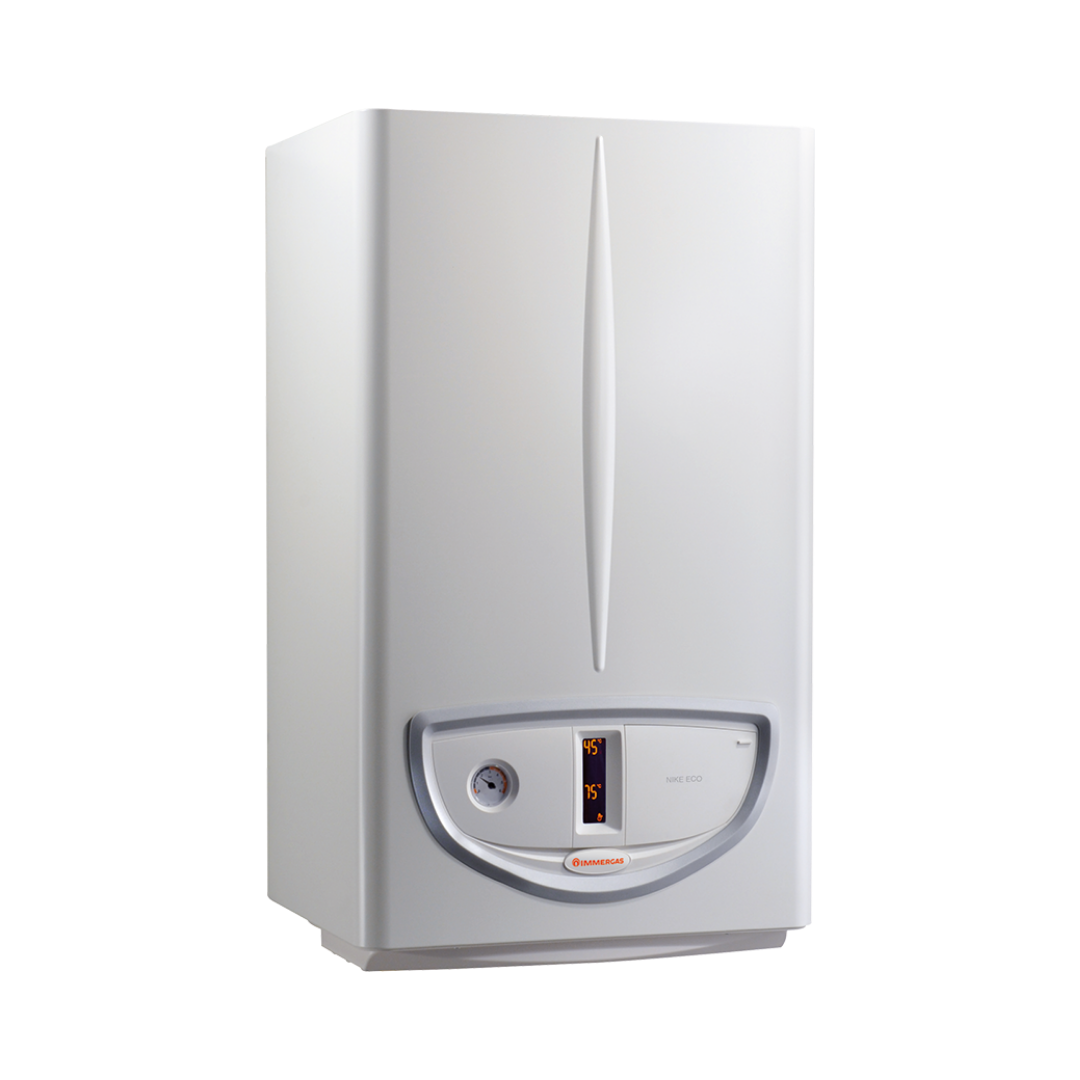

Immergas Nike Eco 24 Methane 24 Kw Open Chamber Boiler Code 3.028476 - Low Nox

Technical Features

Model

Immergas Nike Eco 24 Methane 24 kW Open-Chamber Low Nox Boiler

Product Code: 3.028476

Energy Efficiency

Maximum nominal heat output kW (kcal/h) 26.6 (22,882)
Minimum heat output in domestic hot water kW (kcal/h) 9.6 (8,251)
Minimum heat output in heating kW (kcal/h) 10.7 (9,190)
Maximum useful thermal power kW (kcal/h) 24.0 (20,640)
Minimum useful thermal power in domestic hot water kW (kcal/h) 8.5 (7,310)
Minimum useful thermal power in heating kW (kcal/h) 9.5 (8,170)
Useful thermal efficiency at 100% Pn (80/60 °C) % 90.2
Useful thermal efficiency at 30% Pn (80/60 °C) % 88.9

Performance

Gas flow rate to the burner (methane) max/min m3/h 2.83/1.04
Flue gas temperature P nom./P min. °C 96/61
NOX Class 6
Weighted NOX mg/kWh 32
Weighted CO mg/kWh 34
Specific flow rate in continuous service of sanitary water (∆t 30 °C) l/min 11.2
Minimum dynamic pressure of the sanitary circuit bar 0.3
Nominal heating expansion vessel capacity (total) litres 10 (8.0)
Degree of electrical protection IP X5D

Dimensions

Dimensions (HxWxD) 785 x 440 x 340 mm

General Features

NIKE ECO



The Immergas Nike Eco 24 boiler is the ideal solution for those seeking an efficient and affordable product. It is a wall-mounted , open-chamber boiler designed to ensure maximum comfort and energy savings, perfect for replacing older systems with branched flues. Thanks to its eco-friendly features, it is a product that helps reduce environmental impact without sacrificing quality and high performance.

With its low-power circulator and eco-friendly burner, both standard, NIKE helps raise the energy efficiency rating for space heating and domestic hot water production. This makes it eligible for current tax deductions for replacements, building renovations, and energy-saving interventions on existing buildings.

COMFORT
Speed ​​of hot water delivery: the BOOST function allows for almost immediate delivery of hot water.
Control panel: the temperature control knobs and the backlit display ensure simple use and immediate management of the boiler functions.
Thermoregulators: Optional. They improve comfort and increase energy savings.
Formula Comfort 10: features the most comprehensive 10-year maintenance program with no activation costs , with the option to extend it up to 15 years. In collaboration with the Authorized Immergas Service Center, it can be activated during the initial inspection.

INSTALLATION
Ideal for replacement: in the presence of existing branched collective flues . IPX5D electrical protection. Antifreeze up to -5°C as standard. Connection unit as standard.
Available exclusively with methane fuel .
