Fujitsu Dual Split Inverter Cassette Air Conditioner R-32 KV Series 9000+9000 BTU With AOEG14KBCA2 Wi-Fi Optional

Technical Features

Model

Fujitsu Dual Split Inverter Cassette Air Conditioner R-32 KV Series 9000+9000 BTU With AOEG14KBCA2 Wi-Fi Optional GRILLE AND CONTROLS INCLUDED

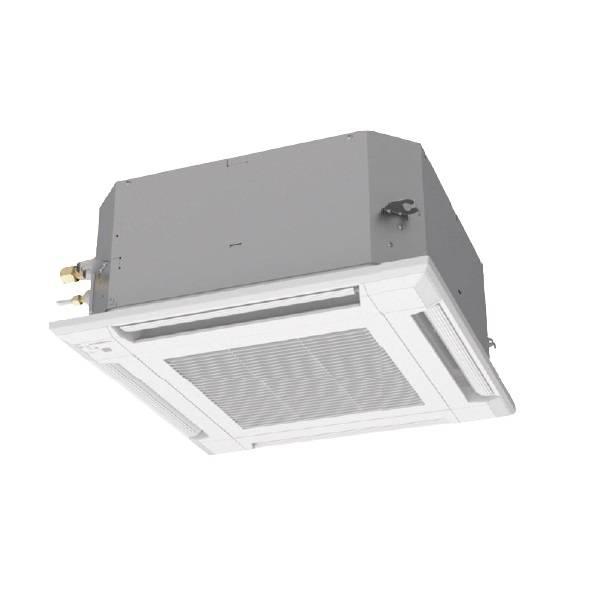

• Internal units: 2x AUXG09KVLA
• External unit: AOEG14KBCA2

Energy efficiency

• SEER: 8.7
• SCOP: 4.7
• Energy efficiency class in cooling: A+++
• Heating energy efficiency class: A++

Performance

• Cooling capacity: 4.0 kW
• Heating capacity: 4.4 kW
• Sound power level : 60 ~ 62 dB(A)
• Sound pressure level : 47 ~ 49 dB(A)

Electrical data

• Power supply (V,Hz,Ø) : 220~240/50/1
• Refrigerant gas: R-32
• Guaranteed temperature range:
  - Cooling: -10° ~ 46°C
  - Heating: -15° ~ 24°C

Installation data

• Liquid tube diameter: 6.35 mm (1/4") x2
• Gas pipe diameter: 9.52 mm (3/8") x2
• Maximum pipe length: 30 m
• Maximum height difference between internal and external unit: 15 m

Dimensions and weight

• External unit dimensions (HxWxD): 542x799x290 mm
• External unit weight: 33.0 kg

General Features

In January 1936, a company called Yaou Shoten was founded in Kawasaki, Japan, to produce radio receivers and loudspeakers. The business quickly expanded into the more interesting household appliances sector, producing the first televisions with built-in loudspeakers for NHK.

This invention laid the foundation for the development of air conditioning equipment.

Today, it boasts a registered capital of 18 billion yen and a workforce of 6,400. It is a constantly evolving global giant with factories, offices, and sales companies spread across the globe, supporting local partners and distributors. Its manufacturing operations span the fields of electronics, telecommunications systems, audio-video systems, and air conditioning, with an annual production of over three million units (sets).

Fujitsu's headquarters are located in Kawasaki, Japan. In Asia, it also has offices in China, Hong Kong, Singapore, Taiwan, Thailand, and the United Arab Emirates. In other continents, it has offices in Australia, New Zealand, Brazil, the United States, Canada, and Germany.

KV Series

Compact and elegant panel design

The panel's compact and elegant design fits perfectly into modular ceilings. The 620x620 mm grid dimensions conceal the unit's presence in the room.

Easy maintenance

Maintenance is easier by removing the ceiling panel next to the unit. Installation costs can be reduced by eliminating the inspection hatch. The air inlet grille can be installed in various directions for easier cleaning.

Flexible installation

Suitable for modular false ceilings, it has a high degree of installation freedom and can be installed next to lighting fixtures or ventilation grilles.

Climate Control Function

• Up and down movement of the deflectors. Automatic opening and closing of the deflectors.
• Automatic ventilation speed Automatically changes the ventilation speed depending on the required temperature in the room
• Automatic Restart In the event of a temporary power failure, the air conditioner restarts automatically when the power returns.
• Automatic cold/heat switching By comparing the room temperature and the set temperature, the air conditioner automatically activates heating or cooling.
• 10°C HEAT 10°C is the minimum attenuation temperature that can be set in heating mode
• Energy saving Control system for energy saving.
• Automatic Sleep Switch-Off Night-time comfort is guaranteed by the gradual regulation of the temperature before the programmed switch-off of the air conditioning
• Daily Timer Four possible selections within 12 hours ON, OFF, ON OFF or OFF ON.
• Filter status indicator Allows you to check the cleanliness of the filters.
