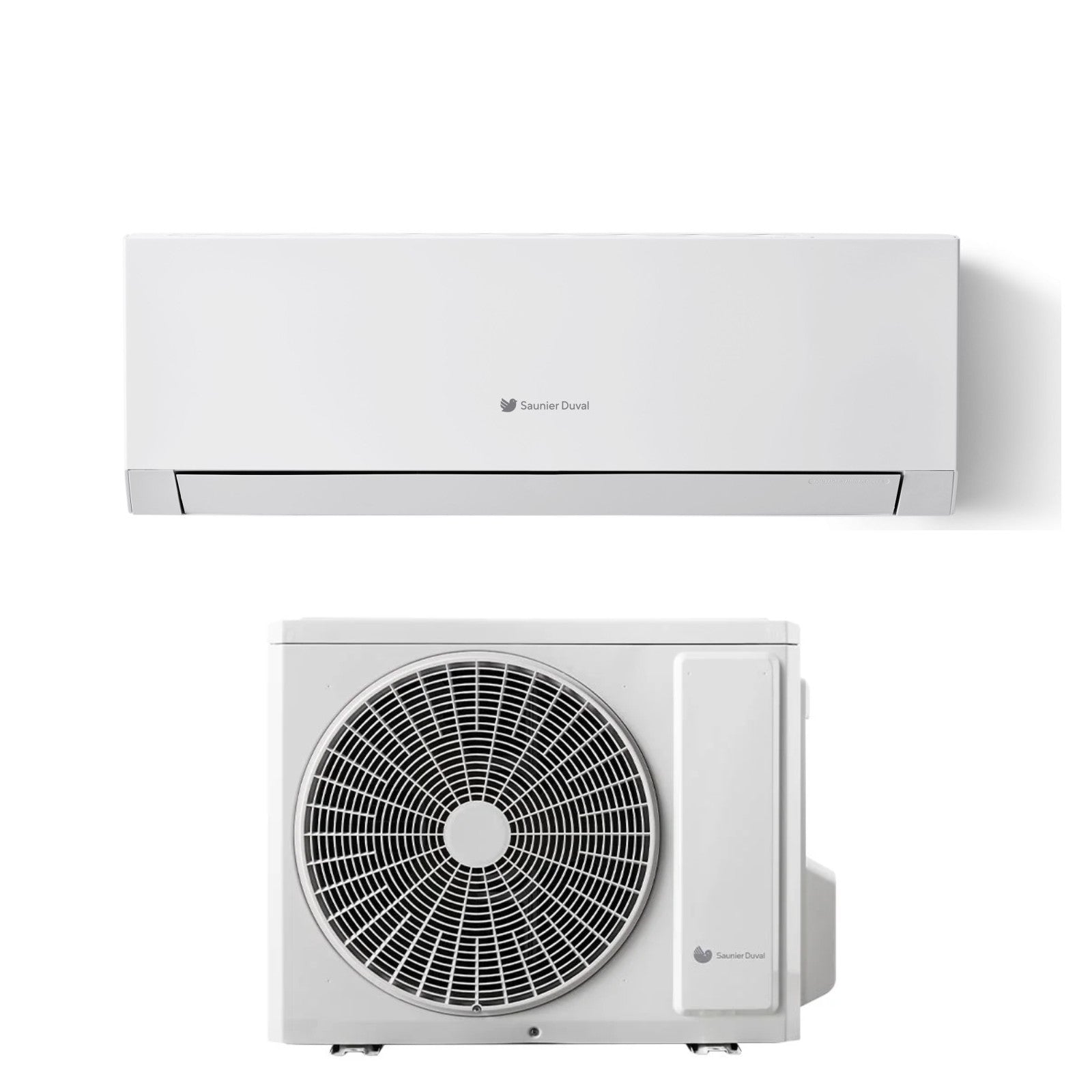

Hermann Saunier Duval Monosplit Inverter R-32 VivAir Max 24000 BTU SDHP1-065SNWI Air Conditioner with Integrated Wi-Fi

Technical Features

Model

Hermann Saunier Duval Inverter R-32 VivAir Max 24,000 BTU SDHP1-065SNWI Wi-Fi Integrated Air Conditioner

• Internal Unit Code: SDHP1-065SNWI
• External Unit Code: SDHP1-065SNWO

Energy Efficiency

• SEER / Energy Class (Scale A+++ – D): 7.50 / A++
• SCOP / Energy class (Scale A+++ – D): 4.3 / A+

Technical Data

• Cooling power kW: 7.30 (1.80 – 7.80)
• Electrical power absorbed in cooling (min/max): 0.35 – 3.50 kW
• Heating power kW: 7.30 (1.50 – 9.40) kW
• Electrical power absorbed in heating (min/max): 0.35 – 3.50 kW
• Air flow (Turbo/H/M/L): 1250/1100/1000/950/900/850/800 m3/h
• Sound pressure UI (Turbo/H/M/L): 48/44/41/40/38/36/33/27 dB(A)
• Sound pressure level EU: 59 dB(A)
• EU operating range cooling: -15 / 50 °C
• EU heating operating range: -15 / 30 °C
• Refrigerant Type: R32

Installation Data

• Pipe Diameter: 1/4” – 5/8” inches
• Maximum length: 25 m
• Maximum height difference between UI and UE: 10 m

Dimensions and Weight

• UI dimensions (HxWxD): 311x993×222 mm
• EU dimensions (HxWxD): 660x958x402 mm
• Net Weight IU/EU: 13.0 / 45.0 kg

General Features

VivAir Max is the new range of wall-mounted monosplit air conditioners that boasts very high energy efficiency of up to A+++ in cooling and up to A++ in heating, an elegant design and numerous technological features.

Thanks to intelligent humidity control that prevents dryness in the environment and a double sterilization system - with Cold Plasma technology and UV lights - that guarantees high-quality and purified indoor air, VivAir Max is the right product whatever your needs.

With the integrated Wi-Fi system with Bluetooth for immediate and intuitive management of the device via APP installed on the smartphone or tablet, and support
of Artificial Intelligence , VivAir Max adapts to the user's preferences and daily habits, ensuring personalized comfort and optimal energy savings .

Furthermore, thanks to the use of R32 refrigerant gas, the air conditioner achieves the highest performance with a reduced impact on the environment.

Excellent air quality in all environments
High comfort, maximum energy efficiency, low environmental impact.

• Double air sterilization system with Cold Plasma technology and UV lights, which guarantee extremely high quality internal air.

• AI algorithm to learn user needs and preferences, ensuring maximum comfort and energy savings.

• Reduced noise of the indoor unit up to 19 dB(A) in silent mode, for a comfortable environment without noise pollution.

• Intelligent humidity control, to prevent dryness of the environment.

Thanks to its technical features and design, the new VivAir Max range requires agile and flexible installation with a compact external unit that makes it easy to identify the correct position for the system.

Furthermore, thanks to the integrated dust filter on the top, it is possible to sanitize the internal unit easily in just a few steps.
