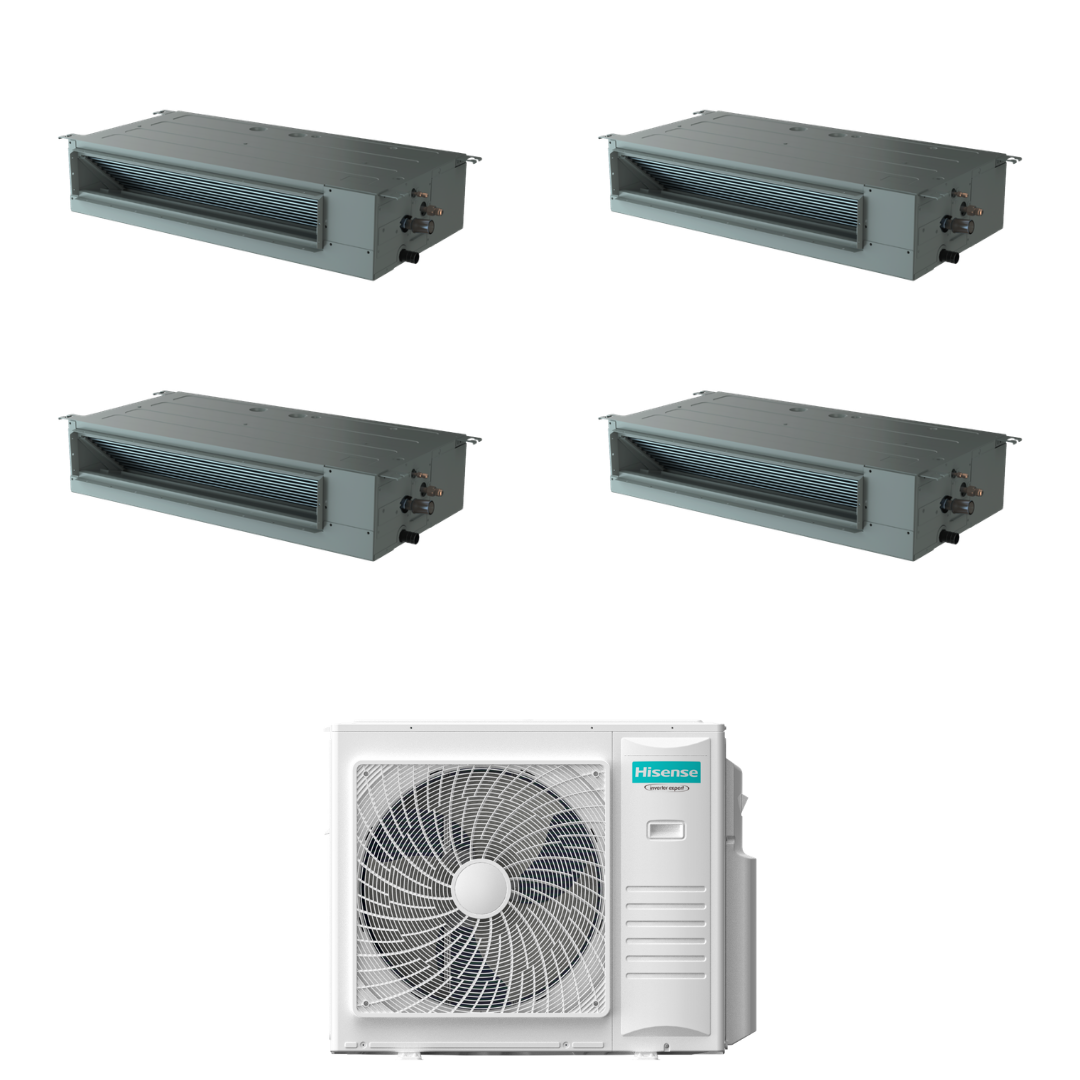

Hisense Quadri Split Inverter Ducted Air Conditioner 9000+9000+12000+18000 With 5AMW105U4RQC

Technical Features

• Model

  Hisense Quadri Split Inverter Ducted Air Conditioner 9000+9000+12000+18000 With 5AMW105U4RQC

• Indoor unit model: 2X ADT26UX4RBL8; 1X ADT35UX4RBL8; 1X ADT52UX4RCL8

• Energy Efficiency

  SEER(W/W): 6.50
  SCOP(W/W) : 4.01
  Energy Efficiency Class (Cooling): A++
  Energy Efficiency Class (Heating): A+

• Performance

  Cooling Capacity (kW) : 10
  Heating Capacity (kW): 11
  Sound power level dB(A) 68
  Sound pressure level dB(A) 53-59

• Characteristics

  Power supply (V/Hz/Φ) : 220~240/50/1
  Refrigerant gas: R-32

• Dimensions

  Outdoor unit (WxHxD): 975x835x360 mm

  Indoor unit ADT26UX4RBL8 (WxHxD): 910x190x447 mm

  Indoor unit ADT35UX4RBL8 (WxHxD): 910x190x447 mm

Indoor unit ADT52UX4RCL8 (WxHxD): 1180x190x447 mm

General Features

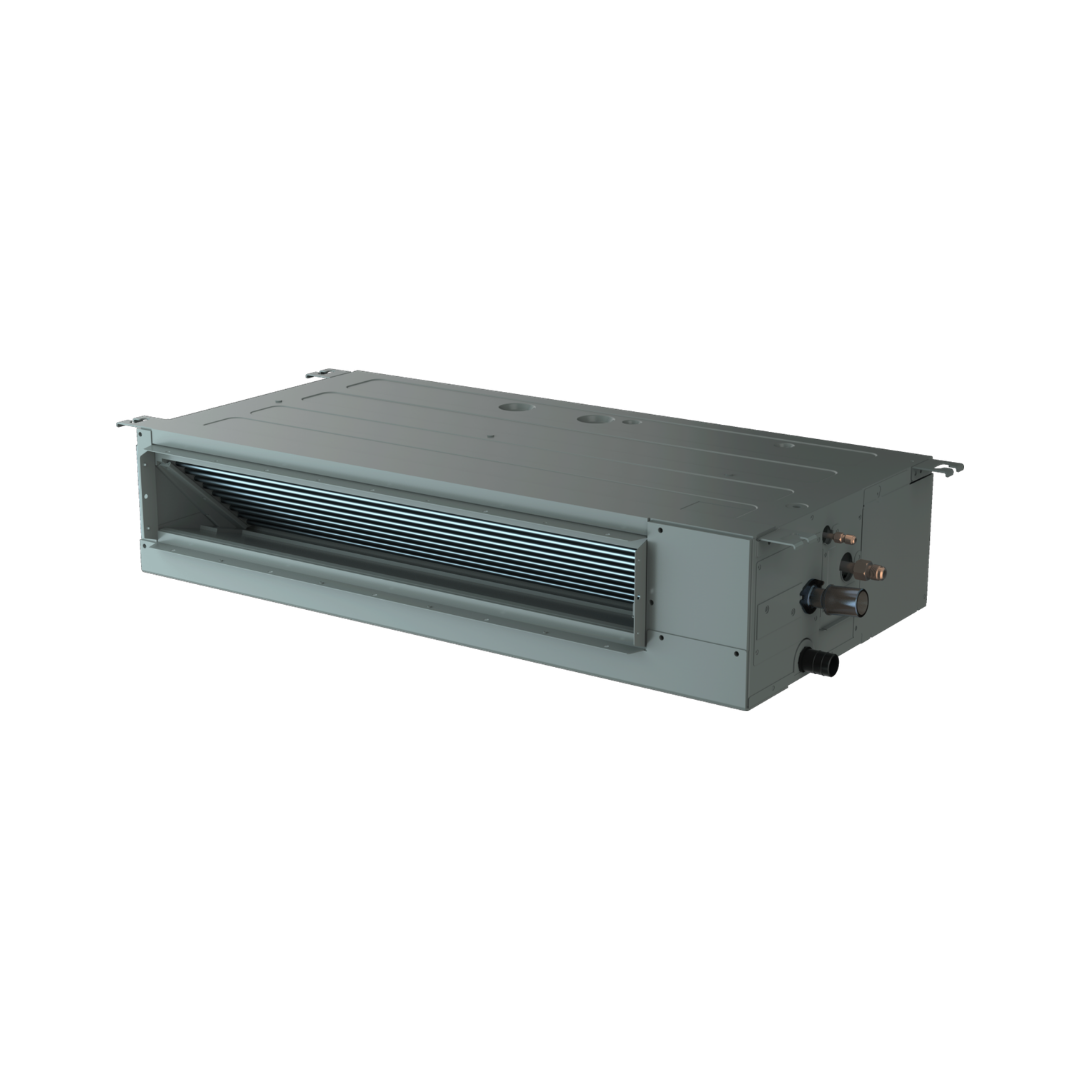

• HISENSE DUCTED



  Twin Rotary Compressor

  The design of the new double-rotor BLDC Inverter compressor ensures better balance and reduced vibration. This translates into maximum silence and excellent efficiency and energy savings.

  Pipes
  Connection systems between indoor units: refrigerant lines up to 50m long with height differences between units of up to 15m (for 48k and 60k models)

  PCB Board Dual Core (dual processor)

  Intelligent control: thanks to the use of two electronic boards, the system reads the operating status more immediately and precisely. Balanced power system: the double control PCB prevents any damage or danger caused by inadequate electrical overload.

  Dual air intake mode

  Advantages: If the distance between the unit and the wall is limited, you can choose the bottom air inlet by removing the unit's bottom frame; this will be much easier and more flexible. The noise level produced by a bottom air inlet can increase by up to 5 dB compared to using a rear air inlet. Therefore, we recommend opting for the latter solution.

  Variable static pressure

  18k: Optional static pressure (10Pa & 30Pa). Each unit can be installed in two ways. 10Pa: Direct airflow without external ducting. 30Pa: External ducting placed on the air outlet. Two different installation methods by changing the electrical connections. Note: The factory setting is 10Pa.
