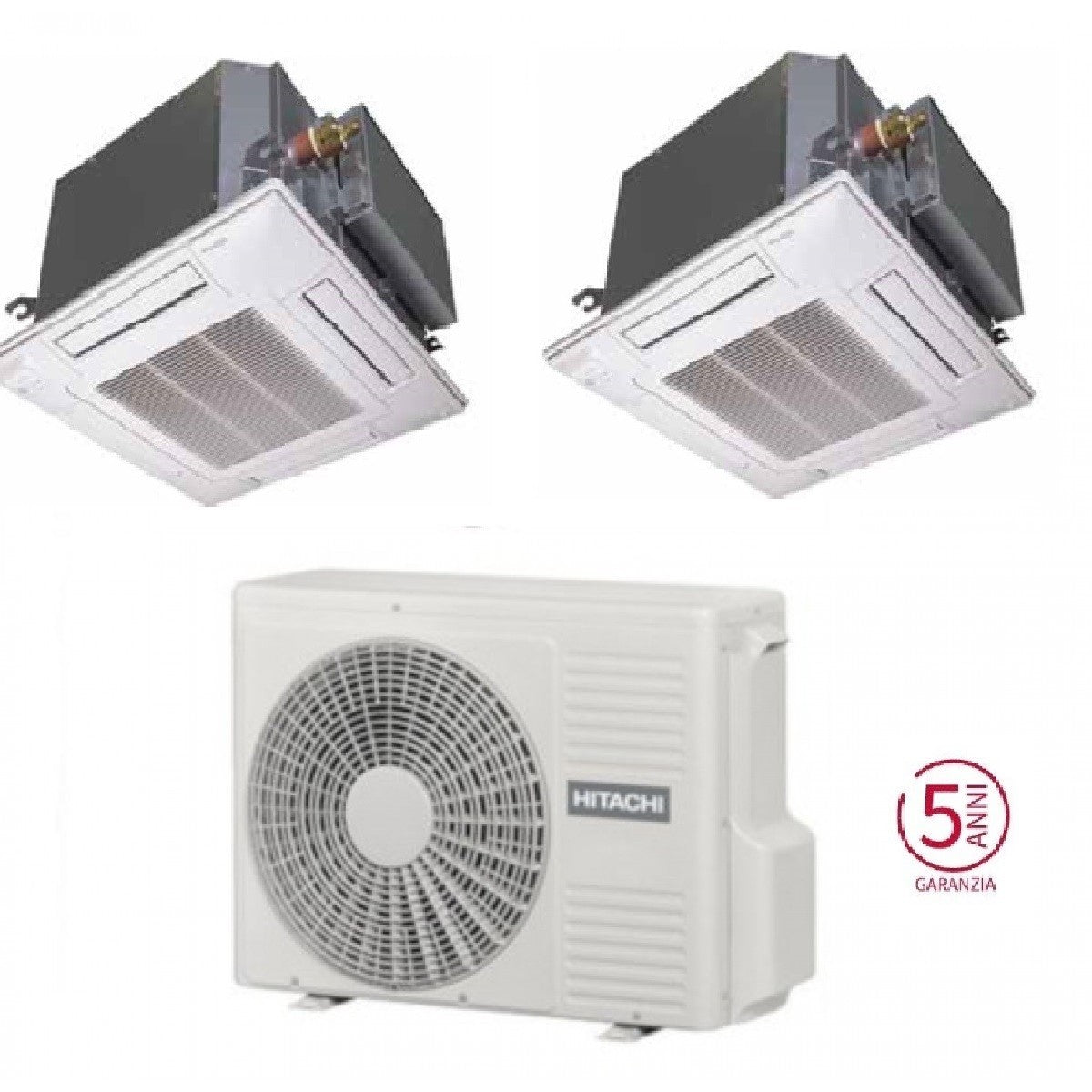

Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Control
Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Control
Click to open expanded view
SKU: cassetta9+12+535994

Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Control

Price
2.610,00 €

+ Spese di spedizione: 40,00€
Extension of Technical Service
Extend your technical service for an additional 3 years after the standard 24-month warranty expires. | Info
Wi-Fi: Without Wi-Fi
In stock and ready for shipping
Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Control

Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Control

Without Wi-Fi

2.610,00 €

+ Spese di spedizione: 40,00€
Without Wi-Fi

TECHNICAL DATA SHEET

Product information

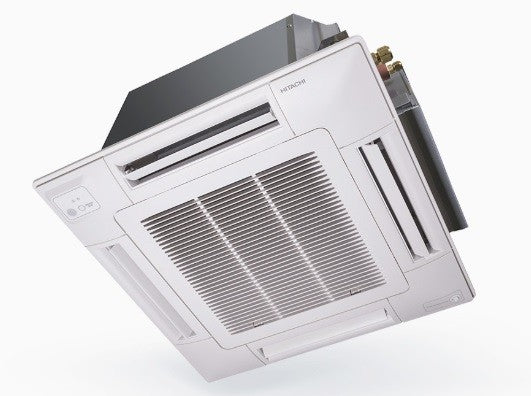

A simple panel, that's what you see when you choose the 4-way cassette from Hitachi Cooling & Heating. The recessed installation is a favorite among architects and designers. The aesthetic impact is minimal and it's ideal for installation in suspended ceilings.

The extended throw and 4-way distribution of the air flow through the adjustable flaps gives the room a uniform and pleasant 360° climate.

Thanks to the control panel, maintenance of the Hitachi Cooling & Heating 4-way Cassette is truly easy to use and clean. Turning it on and off is simple via the Hi-Kumo app, so you can do it any time of day, even when you're at work or traveling.


Technical Features

Model

Hitachi Dual Split Cassette Air Conditioner 4-Way R32 9000+12000 BTU With RAM-G55N2HA(B)E Wi-Fi Optional + Wall Control

  • Indoor unit codes: 1x RAI-VJ25QHAE ; 1x RAI-VJ35QHAE
  • External unit code: RAM-G55N2HA(B)E

Energy Efficiency

SEER: 8.5
SCOP: 4.6
Energy efficiency class in cooling: A+++
Heating energy efficiency class: A++

Performance

Cooling capacity: 5.3 kW
Heating capacity: 5.2 kW
Cooling power consumption: 1.02 kW
Heating consumption: 1.18 kW
Sound power level: 60 dB(A)

Characteristics

Liquid pipe diameter: 6.35 mm (1/4")
Gas pipe diameter: 9.52 mm (3/8")
Maximum pipe length: 35 m
Maximum height difference between internal and external unit: 10 m

Dimensions

Internal Unit Dimensions (H x W x D) 285x570x570
External Unit Dimensions (H x W x D) 750x850x298
Panel dimensions (H x W x D) 32x620x620

General Features

4-WAY CASSETTE



01. THE DISAPPEARING UNIT
–
A simple panel, that's what you see when you choose the 4-way cassette from Hitachi Cooling & Heating. The recessed installation is a favorite among architects and designers. The aesthetic impact is minimal and it's ideal for installation in suspended ceilings.

02. THE SHAPE OF AIR
–
The extended throw and 4-way distribution of the air flow through the adjustable flaps gives the room a uniform and pleasant 360° climate.

03. CLEANING AND CONTROL WITH A SIMPLE TOUCH
–
Thanks to the control panel, maintenance of the Hitachi Cooling & Heating 4-way Cassette is truly easy to use and clean. Turning it on and off is simple via the Hi-Kumo app, so you can do it any time of day, even when you're at work or traveling.
