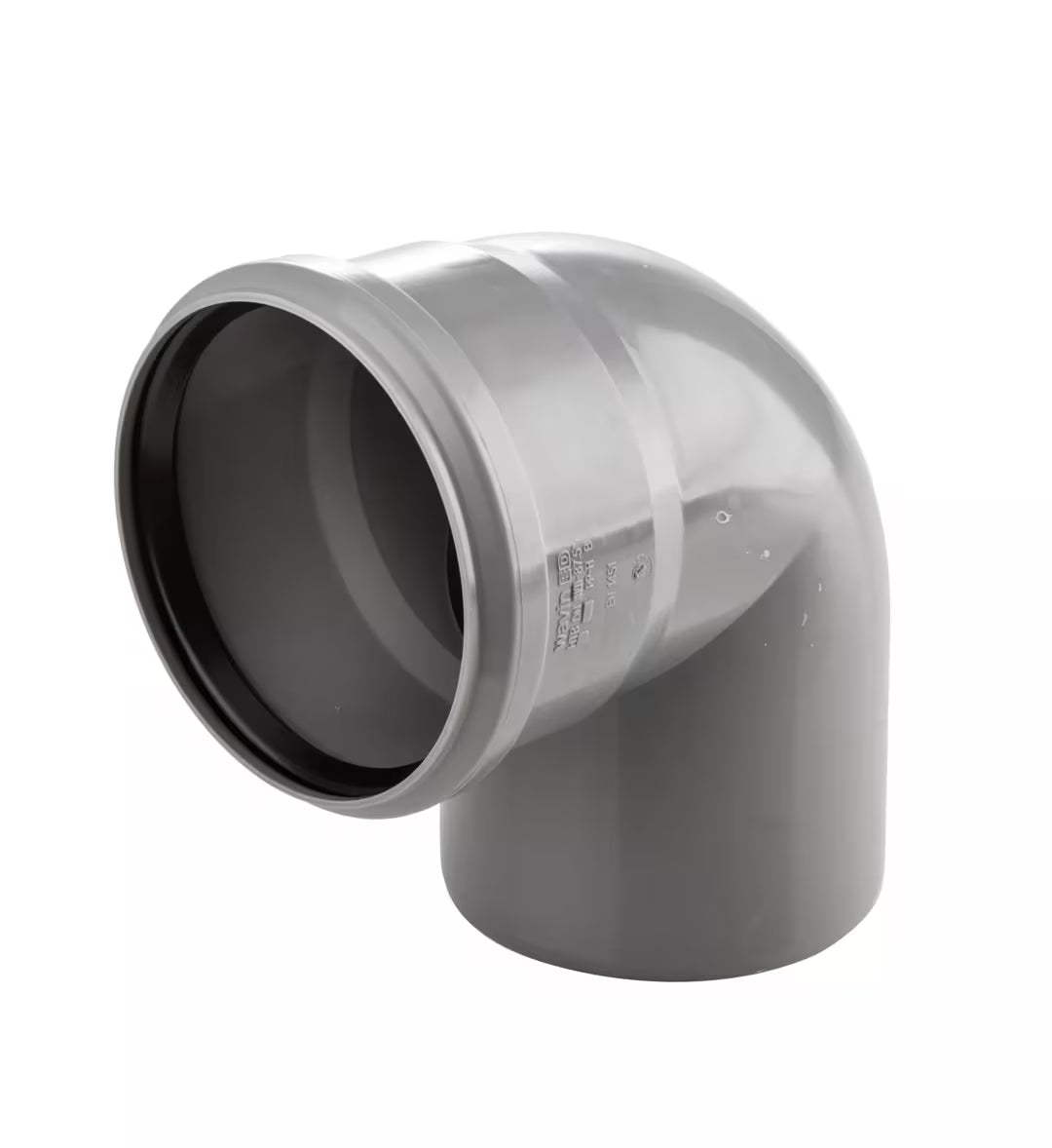

Wavin 87° 30' PP ED TECH Push-In Bend Available in Various Diameters

PP ED TECH WAVIN

Technical specifications

ETIM Classification EC003024
Material connection 1 Polypropylene (PP)
Material quality connection 1 More
Surface protection connection 1 Untreated
Surface treatment connection 1 Untreated
Material connection 2 Polypropylene (PP)
Material Quality Connection 2 More
Surface protection connection 2 Untreated
Surface treatment connection 1 Untreated
Elbow shape
One-piece model
Curve angle 87.5°
Curve range 0mm
Reducer No
System oriented Yes
Connection nominal internal diameter Other
Outer diameter, connection 1 32mm
Thickness, connection 1 1.8mm
Connection 1 Quick coupling (push fitting)
Contour code connection 1 Universal
Nominal internal diameter of connection 2 More
External diameter, connection 2 32mm
Thickness, connection 2 1.6mm
Connection 2 Quick coupling (push fitting)
Universal Outline Code Connection 2
Suitable main color Grey
SBR sealing material
With bumper pin No
Pressure drop coefficient 0.0000
High tensile strength No
Length 63.5mm
Connection length 1 49.5mm
Insertion depth 1 49.5mm
Connection length 2 45mm
Insertion depth 2 45mm
Key opening 0mm
Measure 0mm
Fluid temperature (continued) 20 - 90
Maximum operating pressure at 20°C 0bar
