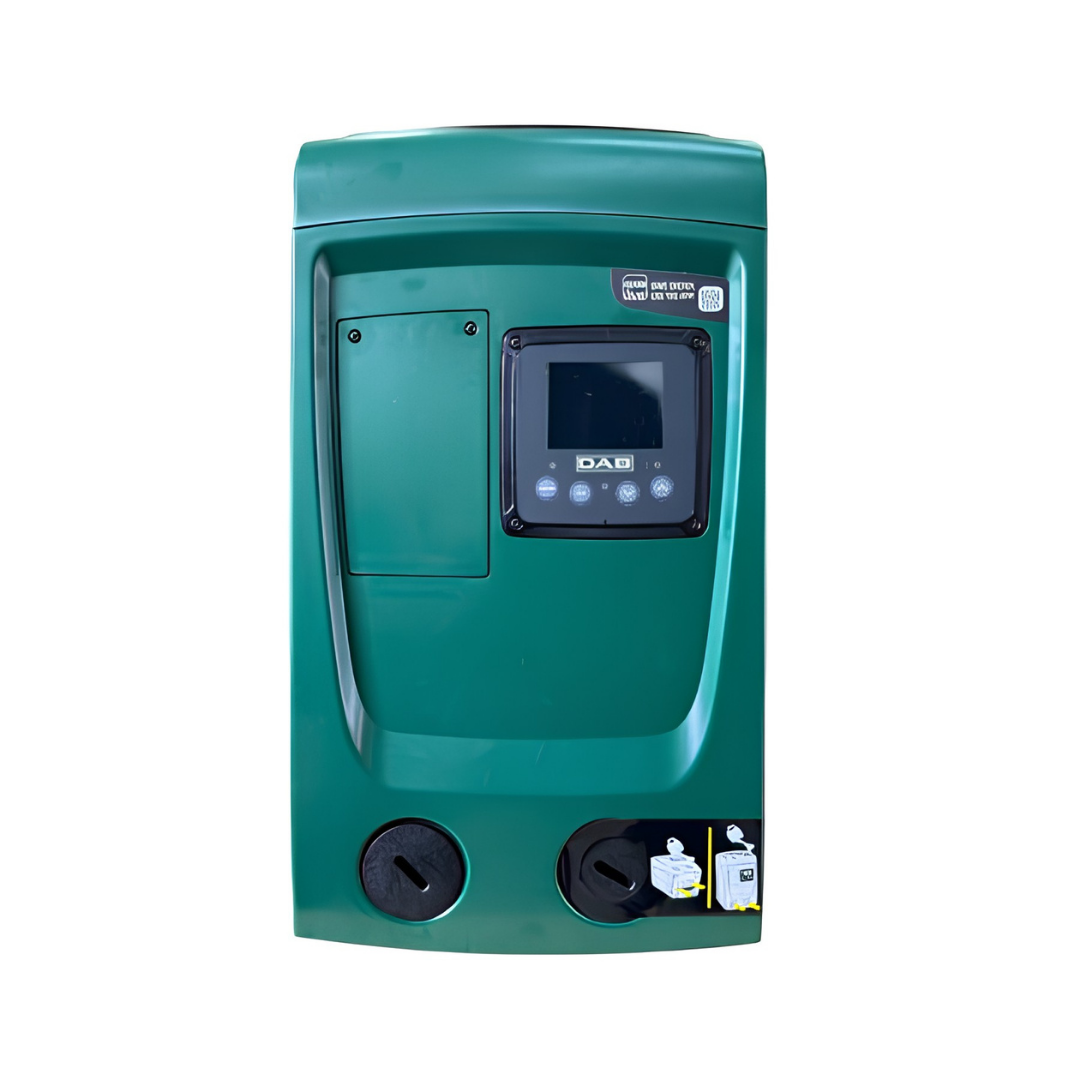

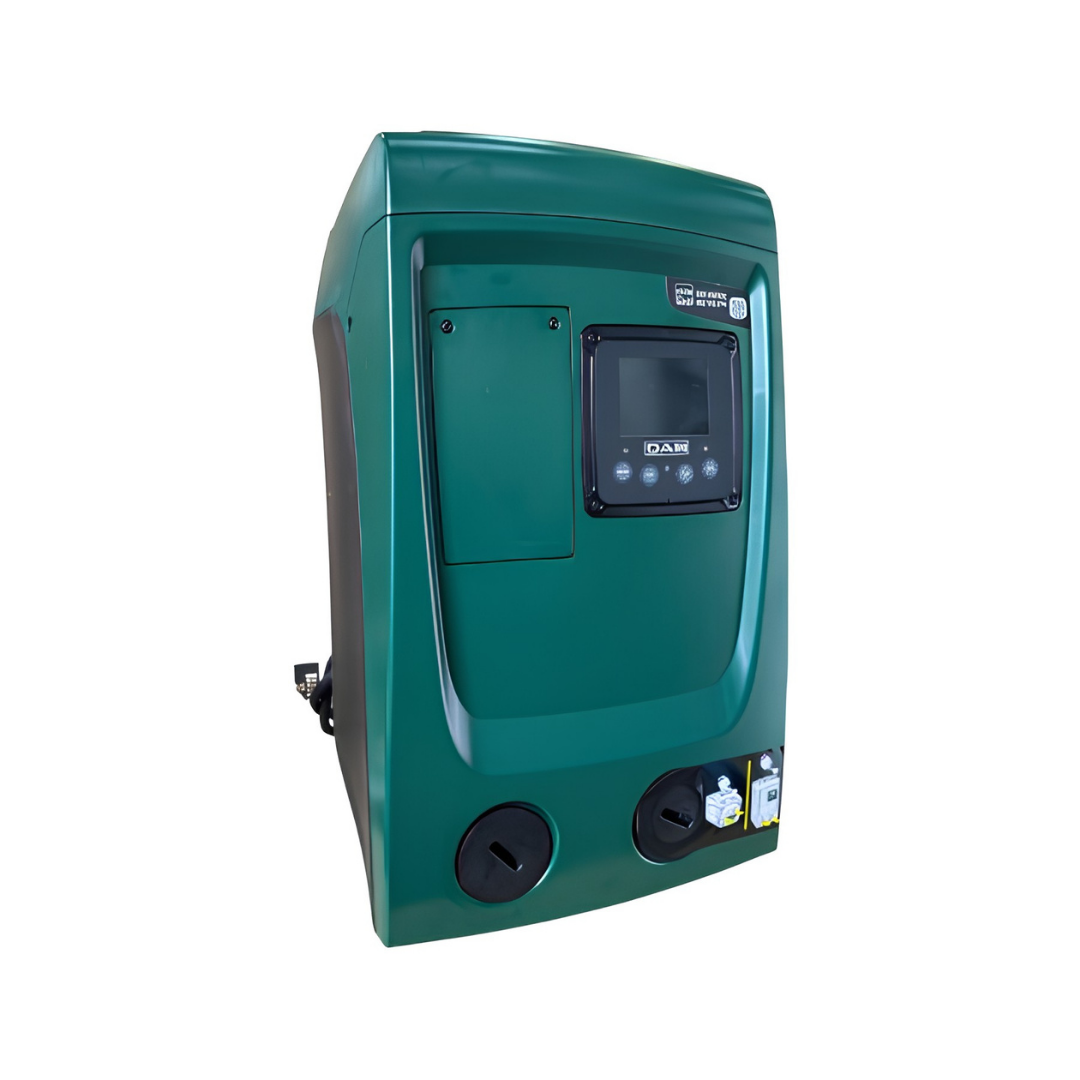

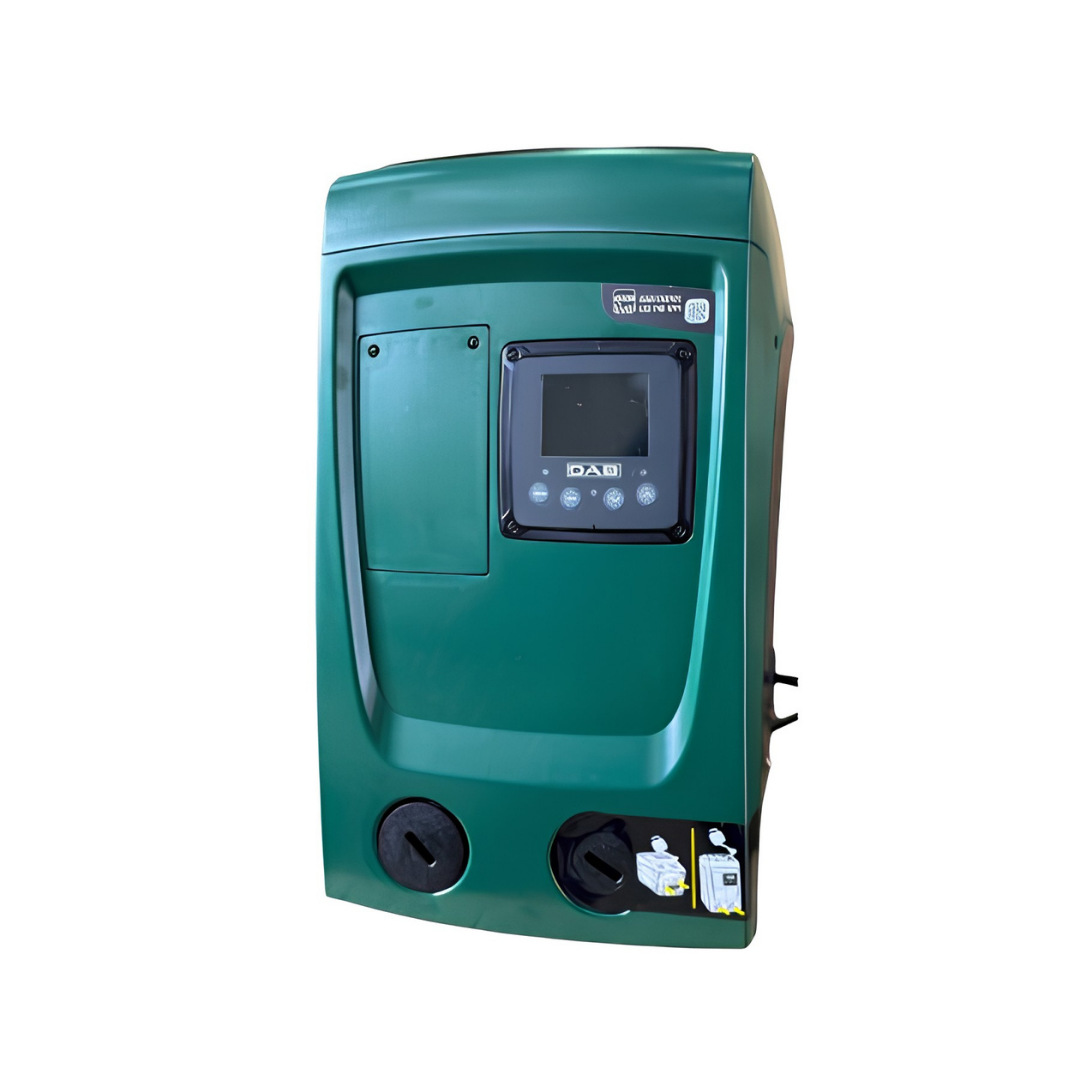

DAB Inverter Electric Pump Model ESYBOX MINI 3 For Water Pressurization Code 60212597

Technical Features

Model

Dab Electric Pump for Pressurization System Model Esybox Mini 3

Performance

• Flow rate: up to 80 l/min

• Head up to 55 m

• Maximum suction depth: 8 meters

• Maximum ambient temperature: +50°C

• Maximum working pressure: 7.5 bar (750 kPa)

• Motor protection rating: IPX4

• Insulation class: F

Dimensions and weight

• (LxHxD): 263x439x236 mm
• Weight: 14.6 kg

General Features

ESYBOX MINI 3

DAB's Esybox Mini 3 is designed for pressurization, gardening, irrigation, and groundwater extraction in domestic and residential settings. It belongs to the Esyline series and therefore comes with a variety of accessories.

The system is “all-inclusive”, including among other components an expansion vessel, a self-priming multi-impeller pump, an inverter and a display.

With the Esybox Mini 3, low water pressure in your home will no longer be a problem because the Esybox Mini 3 booster pump can increase and maintain constant pressure. Thanks to its integrated self-priming pump, it can also draw water from wells. The inverter allows the motor to vary its speed based on demand, resulting in greater efficiency and therefore energy savings.

Esybox Mini 3 is silent, just 45dB, less than a conversation between people and therefore can also be installed in inhabited environments, such as the kitchen.

Operating range: flow rate up to 120 l/min; head up to 65 m

Pumped liquid: clean, free from solid or abrasive substances, non-viscous, non-aggressive, non-crystallized and chemically neutral

Liquid temperature range: from 0°C to +35°C for domestic use - from 0°C to +40°C for other uses

Maximum suction depth: 8 metres - 7 metres 30/50 version

The Dab E.Sybox pump aims to revolutionize the water pressurization system, unlike any other booster pump system. Its extremely compact dimensions make a difference in comfort and performance, even during installation and use. The booster pump uses state-of-the-art Dab technology, which allows for constant pressure based on demand and consequently optimized energy consumption (Inverter Technology). The new 3-impeller model ensures further noise reduction.

High-resolution 70x40 mm LCD display that can be adjusted to suit various installations. The intuitive interface allows access to all information and the ability to customize key settings to suit the specific application.
