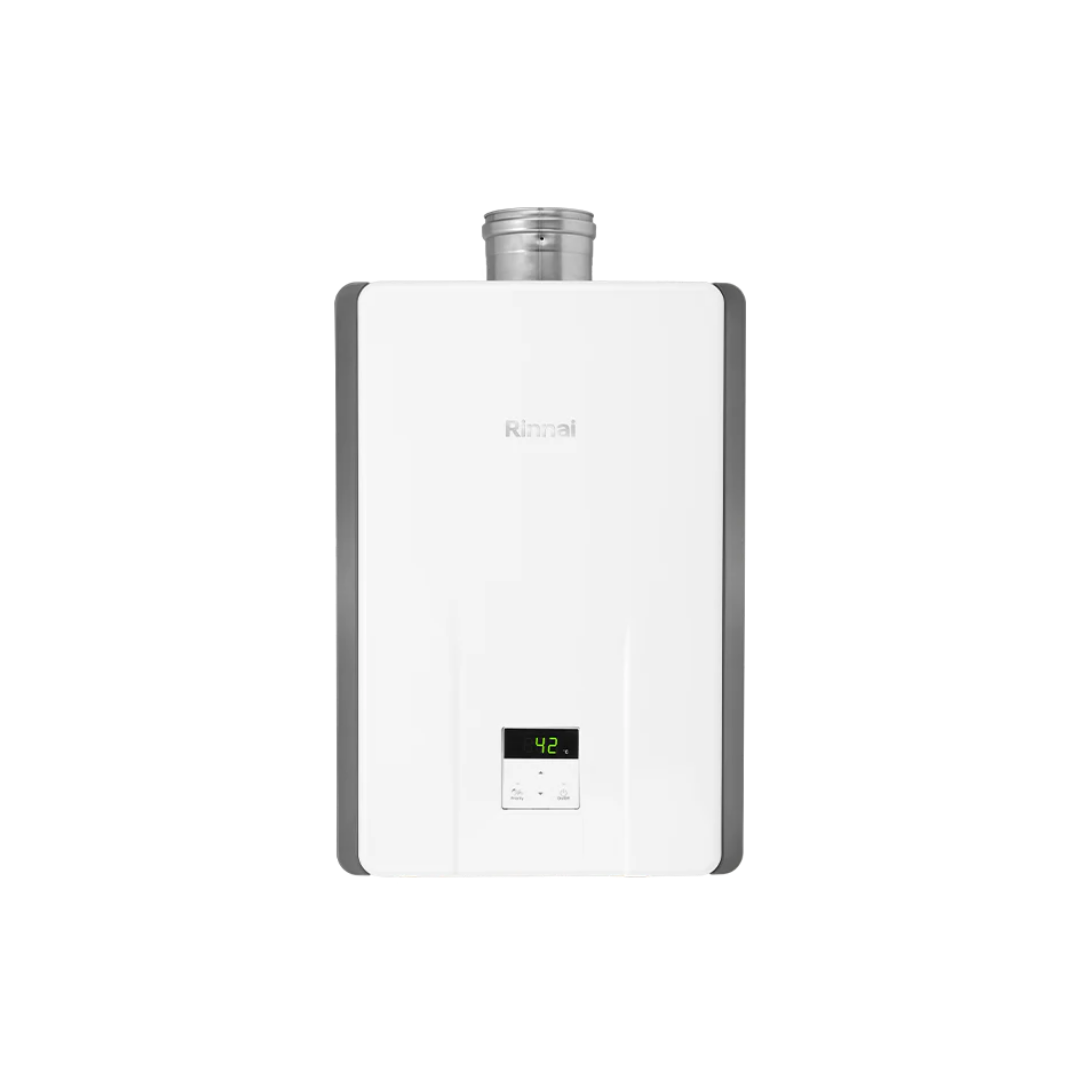

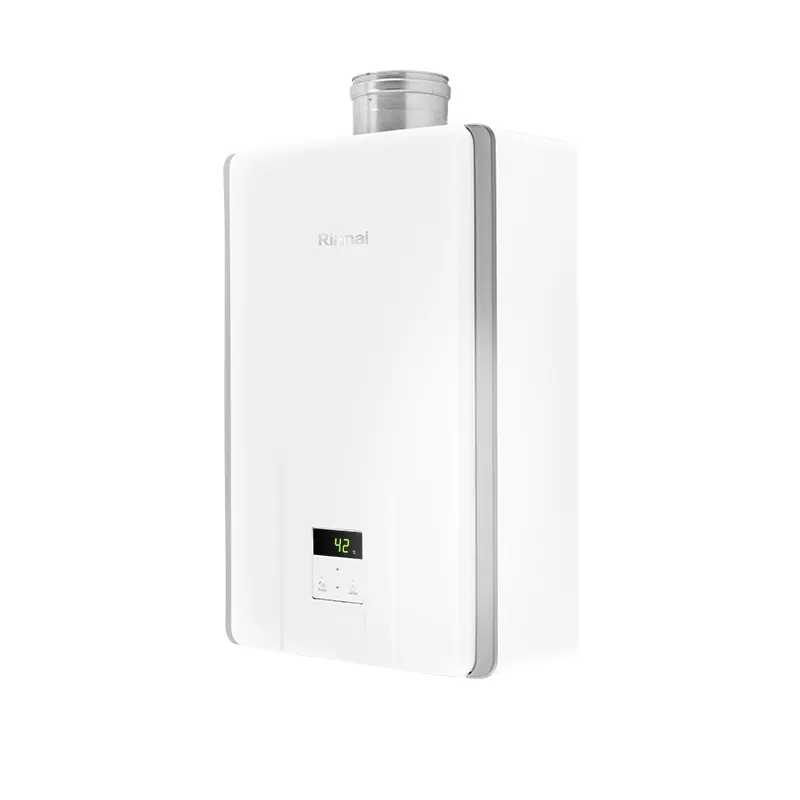

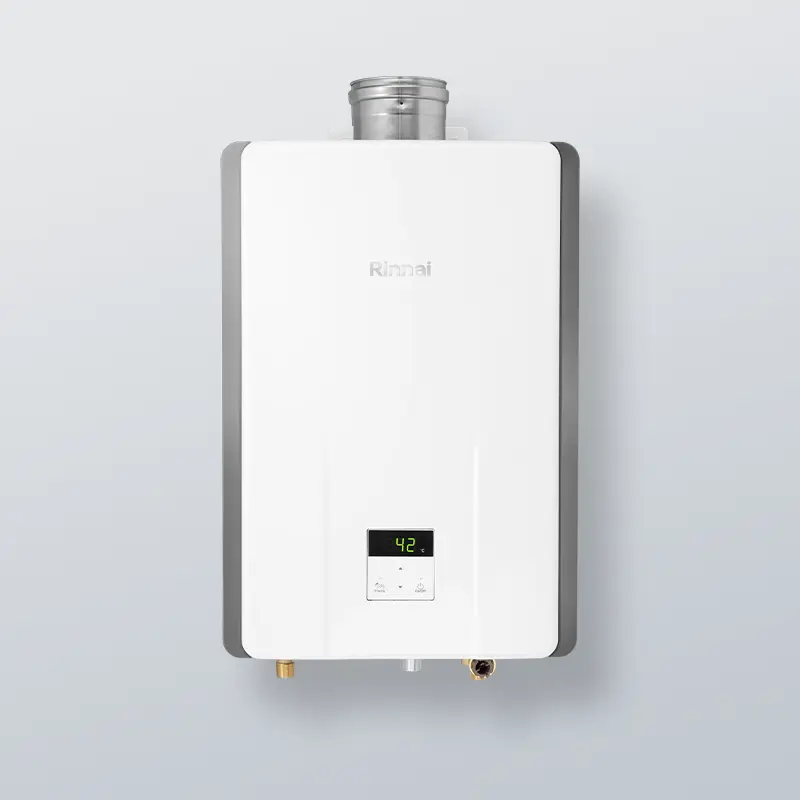

Rinnai Infinity 17i Internal Methane Gas Water Heater Code REU-A1720FFU-E-NG - Complete with Flue Gas Exhaust Kit

Technical Features

Model

Rinnai Infinity 17i internal methane gas water heater complete with flue gas exhaust kit

Product Code: REU-A1720FFU-E-NG

Energy Efficiency

Internal Installation
Device type C
Energy class A
Load profile L
Available versions: Methane, LPG, propane air
Thermal output (kW) min 4.1 / Max 32.40
Hydraulic flow (l/min) min 2 l/min MAX 17 l/min (20 l/min ∆T=15°C)
Maximum settable temperature (°C) 65

Performance

Minimum activation pressure (bar) 0.1
Nominal operating pressure (bar) min 1 Max 8.30
Flue pipe Ø 60/100 coaxial, max. exhaust distance 5m + 3 bends, splittable Ø 80/80. Male outlet. See the 'accessories' section.
Maximum number of additional controls that can be installed: 3
Power consumption (W) Normal 55 W Stand-by 1.5 W Antifreeze 116 W
Provision for connection with recirculation yes
Provision for integration with solar yes
Antifreeze as standard, up to -15°

Dimensions

Dimensions LxWxH 373x173x541 mm

General Features

INFINITY INTERNAL



The Infinity 17i 17 liters/min water heater is an instantaneous domestic water heater for installation inside the home. It produces hot water only when actually needed (just when the tap is turned on). Unlike a boiler, it doesn't need to store large quantities of water at high temperatures. This allows for significant savings in terms of energy costs and water consumption. There's no need to mix the water; it comes out immediately at the desired temperature.

NOVELTY'

The installer can select the "high altitude" setting to ensure maximum performance of the water heater even when installed in high mountains, in rarefied air conditions.

NOVELTY'

When the water heater and the utilities are far away and heat losses are generated, the installer can correct the temperature to the degree of use (from +1°C to +3°C) by perfecting the temperature at the tap.

NOVELTY'

A progressive alert warns of any limescale buildup. This allows for cleaning before the level reaches a point where it could cause a malfunction.

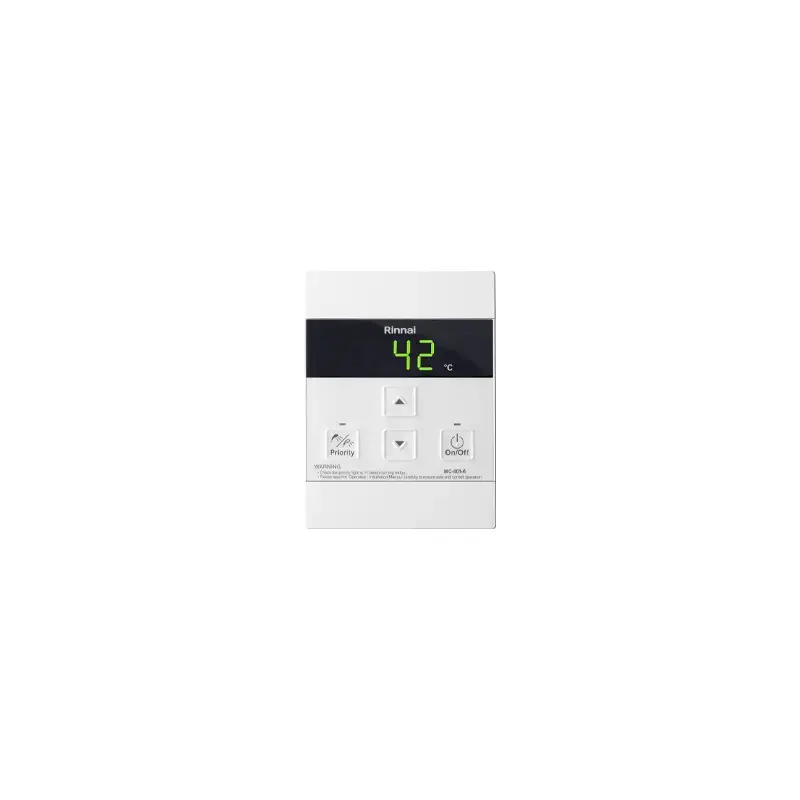

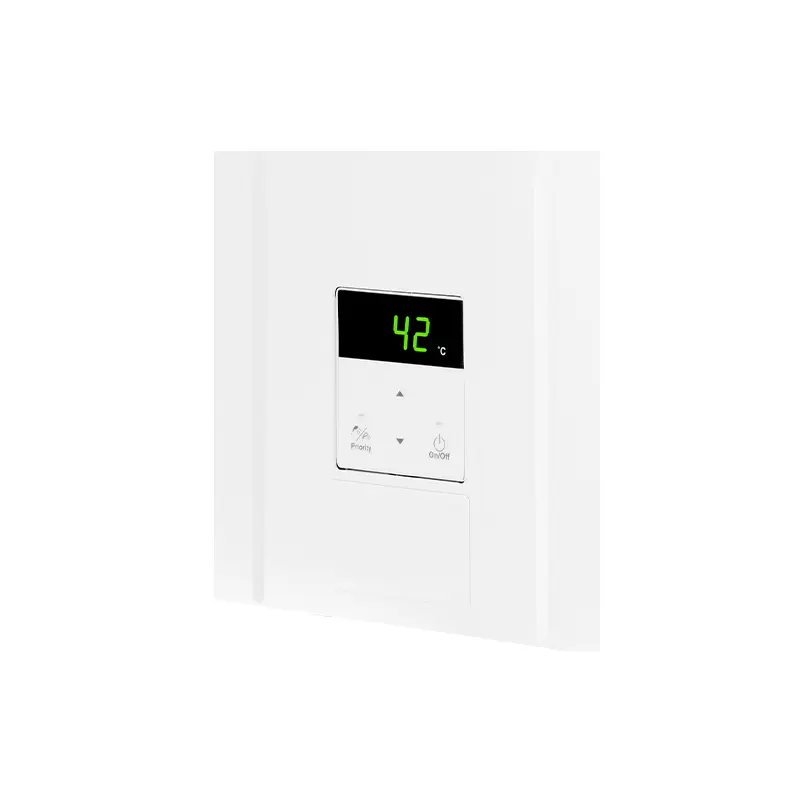

Instantaneous gas-fired domestic hot water producer for indoor installation. Equipped with a dashboard control panel for temperature and degree adjustment and self-diagnostics. Corrosion-resistant enameled galvanized steel casing.

Characteristics

• Unlimited hot water without temperature changes

• Electronic ignition without pilot flame

• Temperature control to the degree via the series control

• Flow regulator: constant temperature as the flow rate varies

• Automatic reset integrated as standard

• Progressive LC code that detects any limescale deposits

• Free warranty extension on rinnai.it


Functions

• Can be combined with solar panels

• Can be combined with recirculation

• Can be combined with a max 500 litre storage tank.

• 3 additional remote controls

• High Altitude Function

• Ultra-thin

• Antifreeze as standard down to -15°C

• Perfect temperature despite the dispersion**

• Eco-sustainable
