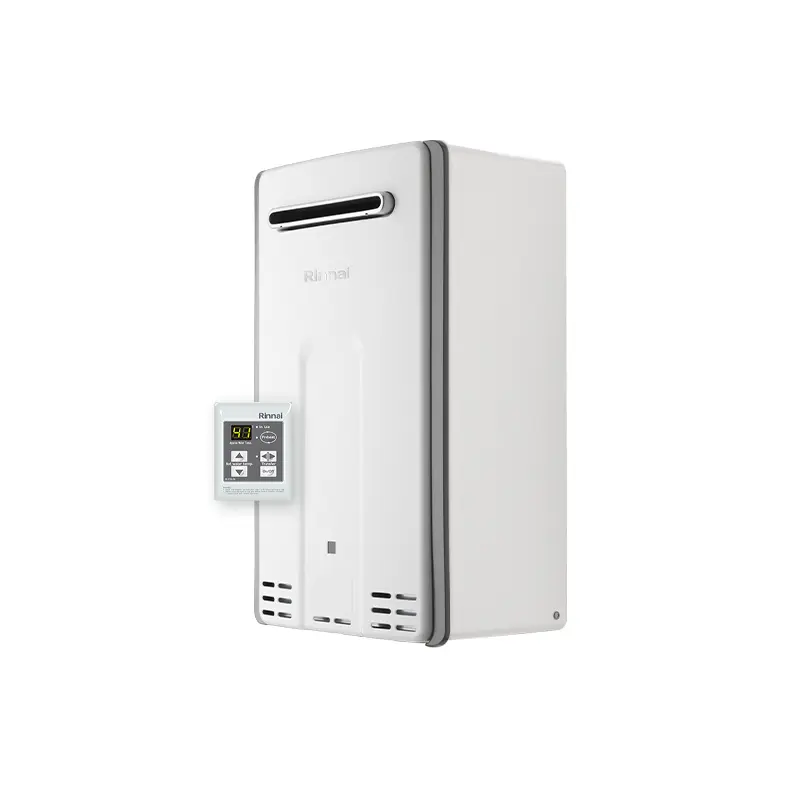

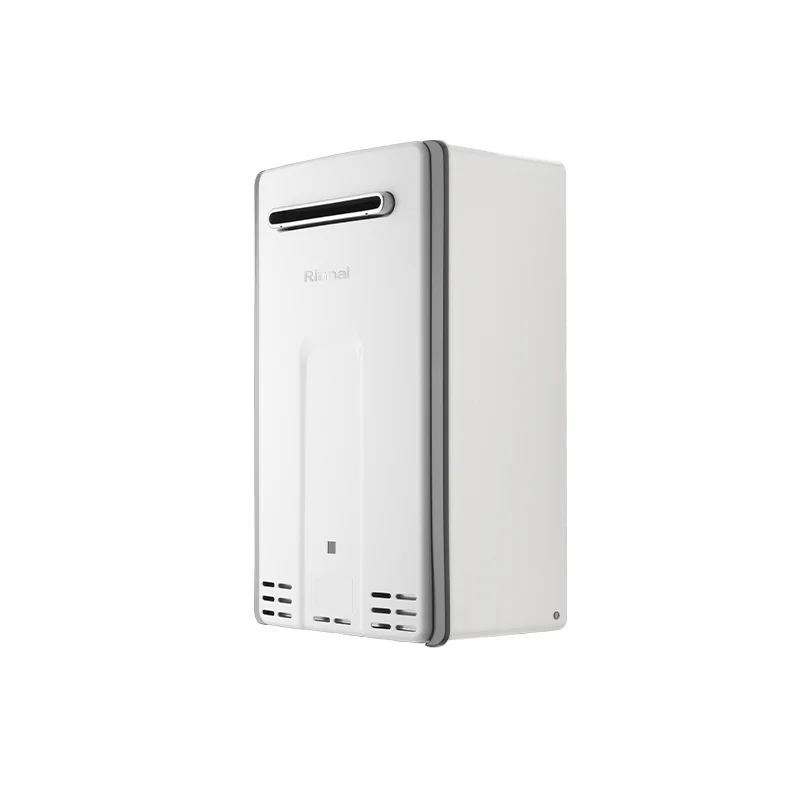

Infinity 28 liters/min is an outdoor instantaneous domestic hot water producer with electronic temperature management via remote control. It can be installed anywhere and controls the water flow rate. The casing is made of corrosion-resistant enameled galvanized steel.
This water heater can manage an external circulator (optional) in domestic systems equipped with domestic hot water recirculation, to immediately supply hot water to the desired location, according to the "economy" or "comfort" mode at the user's discretion.
Technical Features
Model
Rinnai Infinity 28E External LPG Gas Water Heater
Product Code: REU-VCM2837WD-E-LPG
Energy Efficiency
Domestic hot water energy class: A
Annual electricity consumption: 8 kWh/annum
Annual fuel energy consumption: 18 GJ/annum
Rated power consumption: 65 W
Performance
Antifreeze as standard up to -20°C
Min/Max methane thermal capacity (kW) 2.8/53
Water flow rate Δt 25°C Min/Max (l/min) 1.5/28 l/min (37 l/min with ∆T=20°C)
Maximum operating temperature (°C) 85
Minimum activation pressure (bar) 0.1
Min/Max operating pressure (bar) 1.5 / 10
Dimensions
Dimensions (WxHxD) - Weight 356x582x235 mm - 20 Kg
General Features
INFINITY 28E
-
Outdoor Water Heater Air Propane Class A Built-in Flue Without Chimney REU-VCM2837WD-E-NG Italian Warranty IPx5D Protection
-
Infinity 28 litres/min is an instantaneous domestic hot water producer for outdoor installation with electronic temperature management via remote control, which can be installed at any point of use and controls the water flow rate.
-
Corrosion-resistant enamelled galvanised steel casing.
-
This water heater can manage an external circulator (optional) in domestic systems equipped with domestic hot water recirculation, to immediately supply hot water to the desired location, according to the "economy" or "comfort" mode at the user's discretion.
-
Infinity 28e can be connected in cascade with other devices up to a maximum of 25 units using special master cards (one card to connect a maximum of 5 devices, including the connection cables for the first and second device).
-
Unlimited hot water without temperature changes
-
Electronic ignition without pilot flame
-

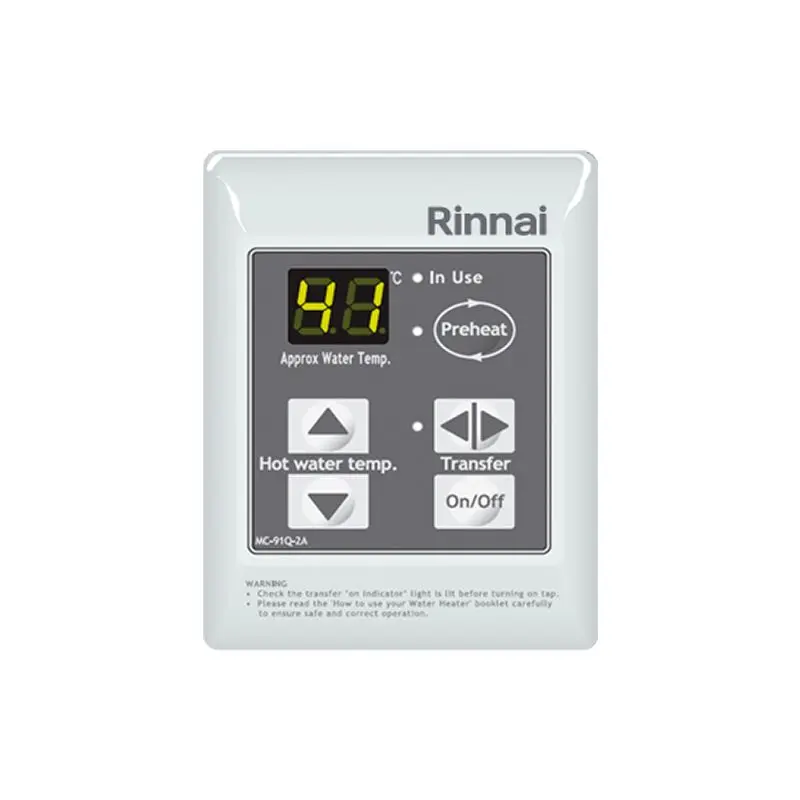

Temperature control to the degree via the standard remote control
-
Flow regulator: constant temperature as the flow rate varies
-
Can be combined with solar panels
-
Can be combined with recirculation and storage tanks up to 1000 litres
-
Max 3 additional remote controls
-
Eco-sustainable
-
Antifreeze as standard up to -20°C
-
IPX5D protection
