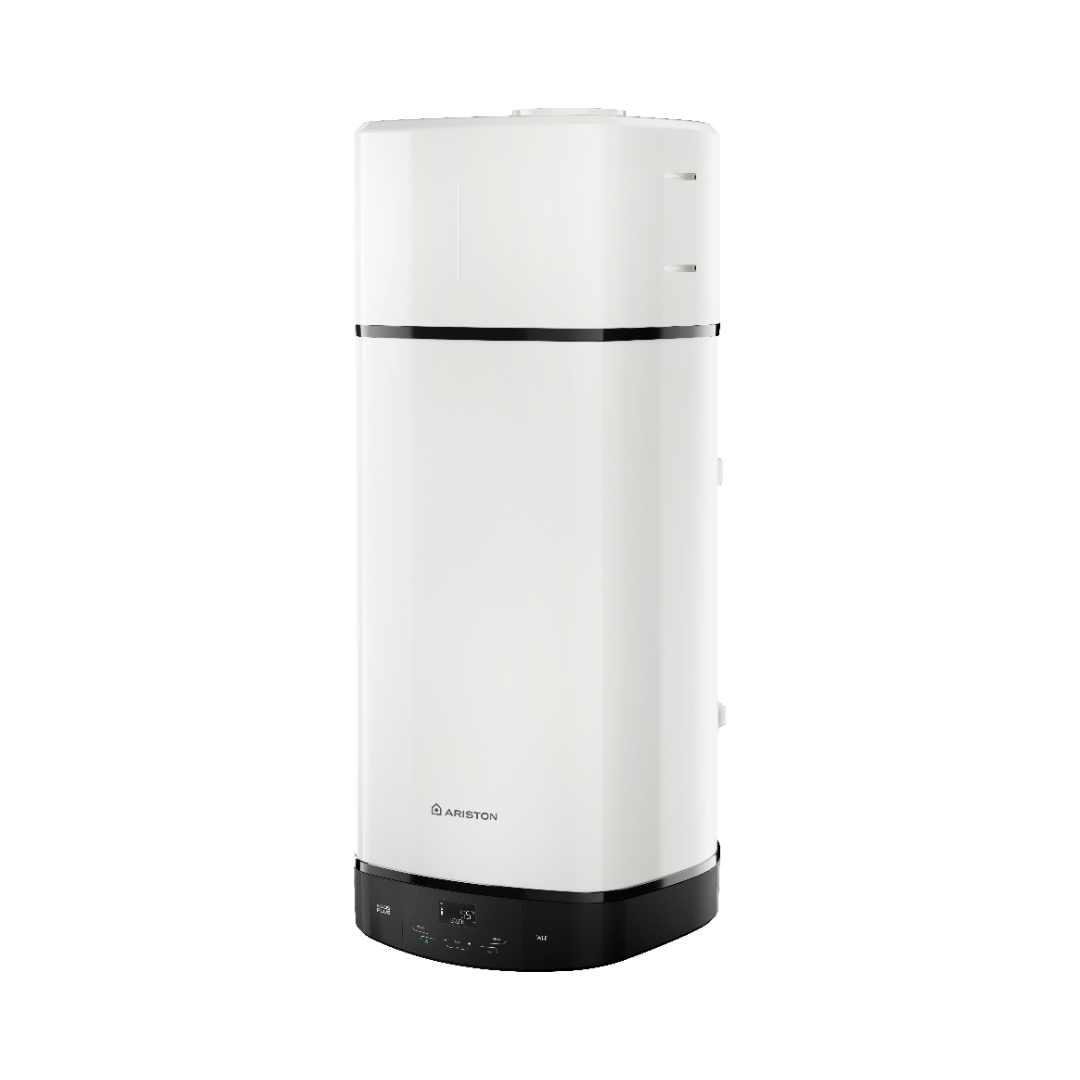

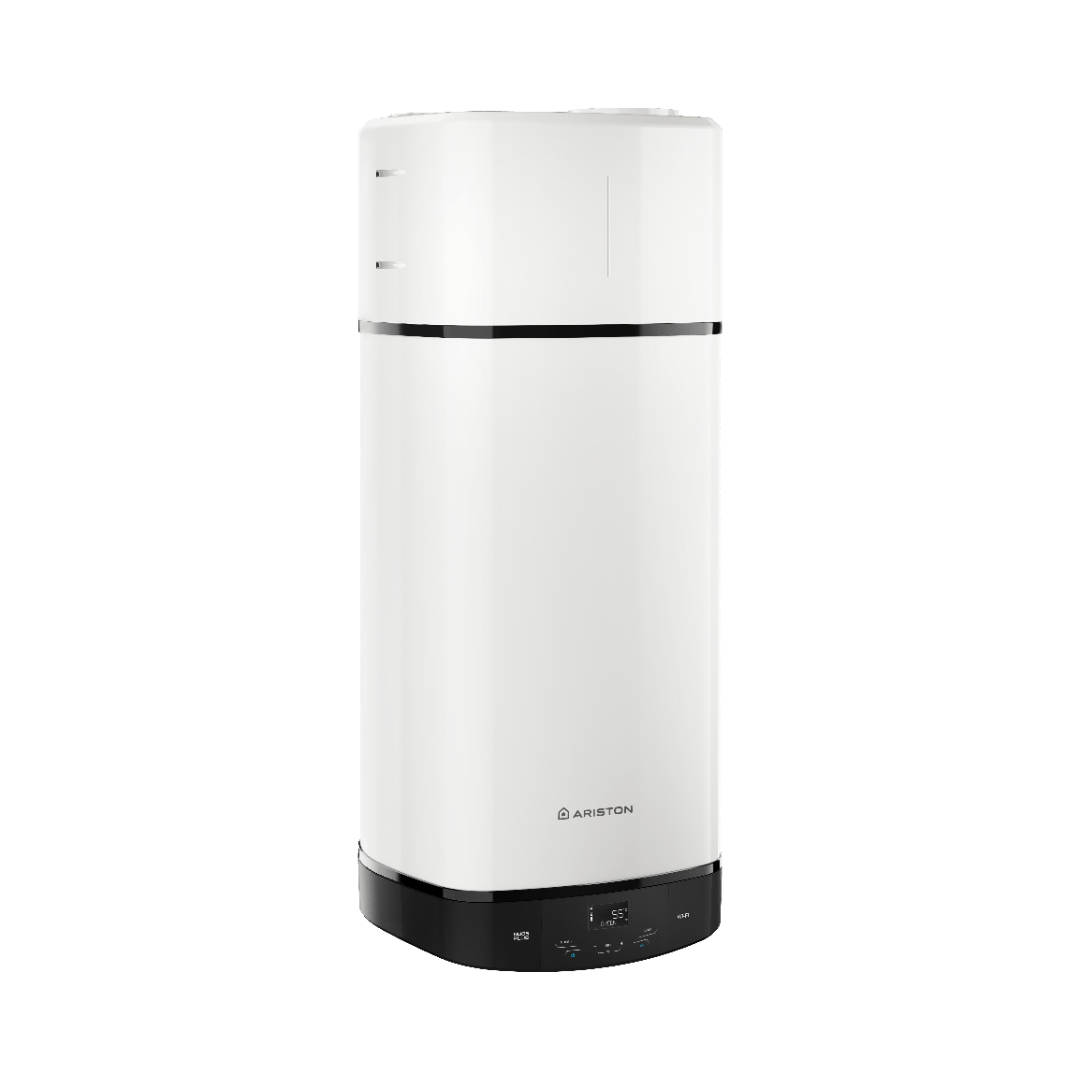

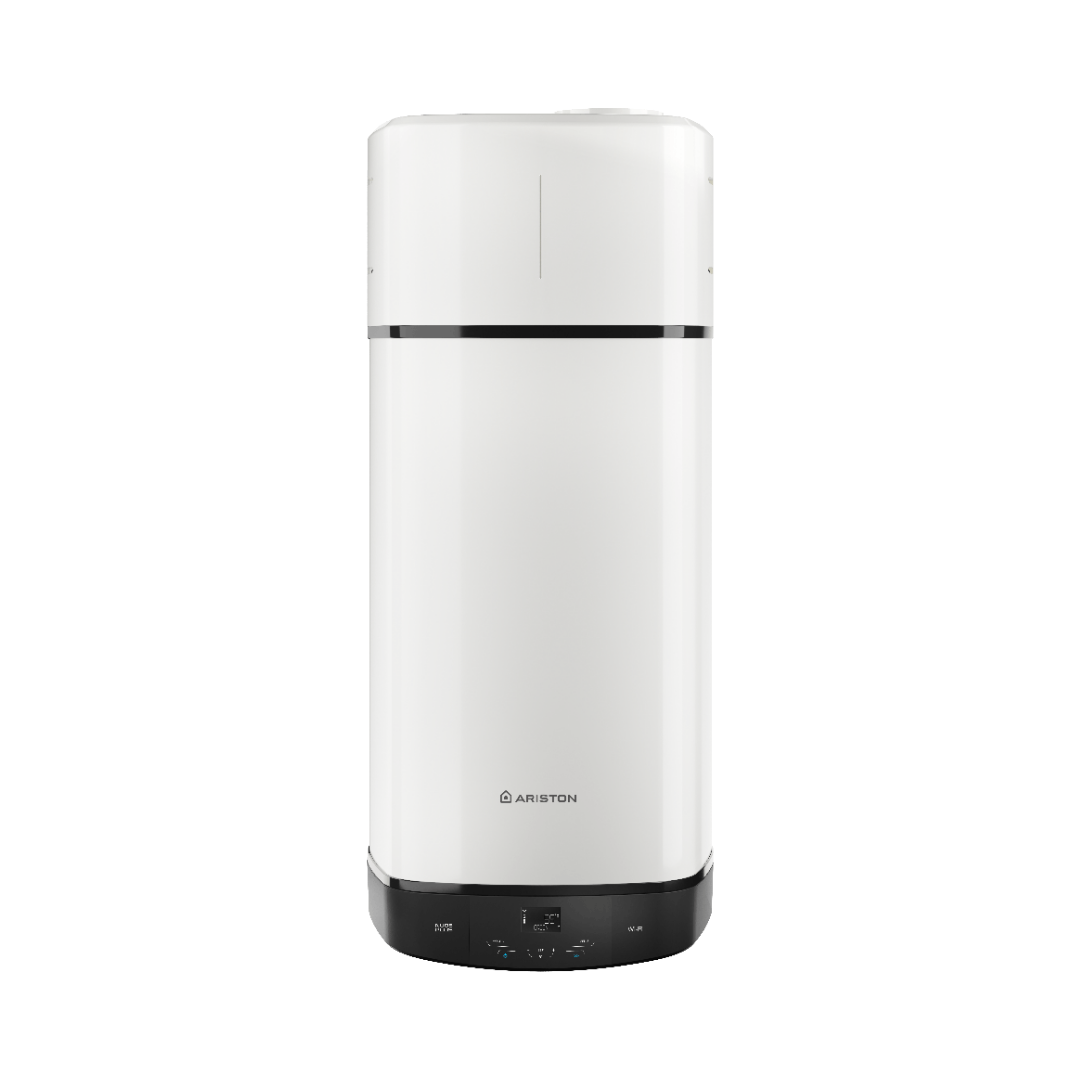

Ariston Nuos Plus S2 WH 80 R-290 Class A+ Heat Pump Water Heater, Code 3629145 - Integrated Wi-Fi

Technical Features

Model

Ariston Nuos Plus S2 WH 80 R-290 Class A+ Heat Pump Water Heater

• Product code: 3629145

• Monoblock wall-mounted water heater
• Integrated Wi-Fi

Energy Efficiency

• Energy efficiency: Class A+

• Load profile: M profile

Performance

• Nominal storage capacity: 80 L

• Empty weight: 90 kg
• COP t Air 7°c (en16147-erp): 2.77
• Heating time with ∆t=45°c (H:min): 03:53

• Min/max air temperature: -10/42
• Average absorbed electrical power W: 280

• Maximum absorbed voltage: 220-240 V

• Resistance power: 1200 W

• Standard air flow (automatic modulation): 120 -170 M/h
• Sound power: 45 dB(A)

Characteristics

• Minimum volume of the installation room m: 20

• IPX24 electrical protection

• Insulation thickness mm: ≈50

• Refrigerant Type: R290

Overall dimensions

General Features

Ariston presents NUOS: the widest and most complete range of eco-friendly heat pump water heaters on the market, offering high efficiency and energy savings.


Ariston has long since chosen the path of ecology and for this reason has been investing, for years now, in the most cutting-edge technology available in the sector.
From this research, the new NUOS heat pump water heaters were born: efficient and capable of heating a large quantity of water using very little electricity, as they absorb heat directly from the outside air.

The NUOS range of heat pump water heaters is available in both monoblock and split versions (i.e., with an external unit), for wall- or floor-mounted installation, and with capacities ranging from 80 to 300 liters. In new buildings, the NUOS range can also be used as an alternative to solar thermal energy as a renewable energy source.

Nuos Plus S2 WH Wi-Fi

The heat pump revolution sets new standards in efficiency by using air heat as a renewable energy source to achieve greater comfort and significant energy savings.

• Anti-corrosion : Super protection of the tank thanks to the presence of the double anode, in magnesium and impressed current, together with the titanium enamelled resistance.


• Antifreeze : System that prevents the condensation water from freezing so that Nuos can operate as a heat pump even with air at -10°C.

Characteristics:

• Lowest warm-up times in its class
• Heat pump operating range with air temperatures from -10 to 42°C
• High COPs for maximum efficiency
• Ecological refrigerant gas R290
• i-Memroy function that allows you to memorize the user's habits of the last 4 weeks so as to guarantee hot water when required by activating the product only when necessary
• Compatible with BridgeNET Bus system
• Remote management via the ARISTON NET app
• Wide choice of special functions
• Photovoltaic function
• Touch interface with LCD display
• Active anode (protech) + magnesium anode for double resistance against corrosion
• Anti-legionella function
• Operation in Green up to air temperature -10°C
