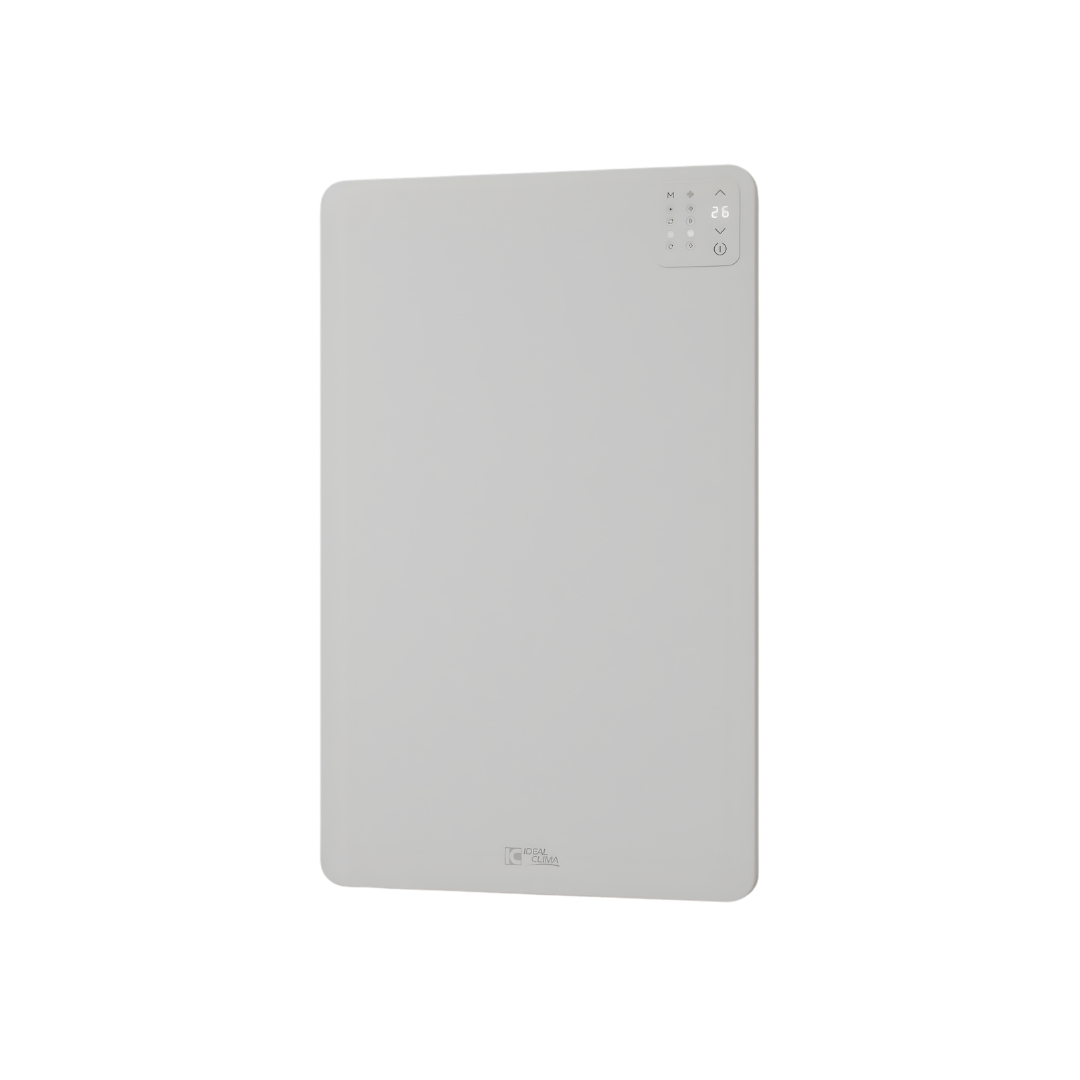

Ideal Clima Hydronic Terminal Model Yoga 350 Thickness 9 cm Code TYG03D - Optional Wi-Fi and On-Board Control Included (Towel Holder Not Included)

Technical Features

Model

Ideal Clima Hydronic Terminal Model Yoga 350 9cm Thickness Integrated Wi-Fi and On-Board Control

Product Code: TYG03D

Energy Efficiency

Heating power T=70-60°C (1) W 2'200
Water flow rate (1) l/min 3.2
Pressure drop (1) kPa 13.9
Heating power T=50-45°C (2) W 1380
Pressure drop (2) kPa 13.9
Heating power (Integration of underfloor systems) T=35-30°C (2) W 680
Pressure drop Kpa 10.6

Performance

Cooling power T=7-12°C (3) W 828
Water flow rate (3) l/min 3.3
Pressure drop (3) kPa 13.3
Air flow rate max mc/h 320
Thickness 90 mm

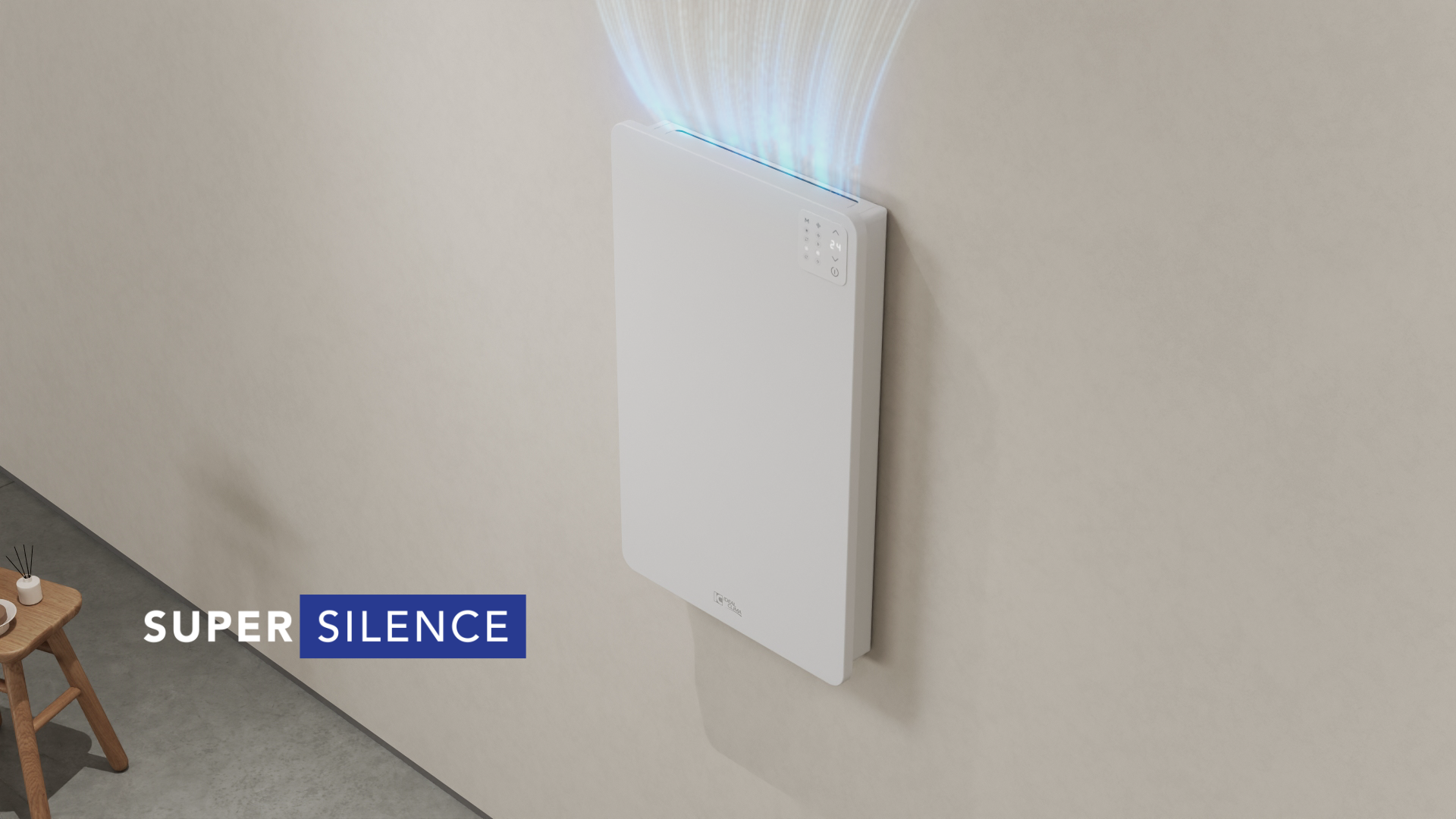

Noise level in super silence mode (4) dB (A) 19
Noise level max speed (4) dB (A) 39
Noise level min speed (4) dB (A) 22.5
Power supply protection degree 220-240 V / 50 Hz ÷ IPX4
Electricity consumption max speed W 18
3/4” M thread hydraulic connections
Recommended hydraulic connection pipes Ø int. mm 12
Drainage pipe Ø int. mm 16

Dimensions

General Features

YOGA



Yoga is the 9 cm thick hydronic terminal with high efficiency exchange battery, tangential ventilation unit with DC Inverter motor, characterised by high silence.

The autonomous digital regulation system is on board the machine with touch buttons and a transparent display.

It can be controlled from on board, by remote control or by a 0-10V wall-mounted programmable thermostat.

Yoga is Wi-Fi Ready and, with the addition of Wi-Fi+, can be used with a dedicated app. The frame and casing are made of steel with a double white powder coating.

Air outlet flap with manually adjustable opening.

It is complete with a condensation collection tray for vertical installation and a removable fine mesh filter.

Right side connections ¾ M.

YOGA HEATS, COOLS AND DEHUMIDIFIES

Yoga is the complete solution for hydronic air conditioning in bathrooms and laundries, both in summer and winter.

With Yoga you can take full advantage of modern reversible heat pumps or condensing boilers.

It is available in 3 sizes from 560 to 830 W in cooling and from 780 to 1,380 W in heating. In BOOST mode, timed for 30 minutes, Yoga can be brought to maximum power for greater comfort in the room.

MOISTURE PROOF

Thanks to a double layer of powder coating in Ideal Clima white, Yoga is perfect for placing in the bathroom without creating unsightly rust.

An insulating layer is placed on the front panel to make Yoga even more resistant and insulated, preventing the formation of condensation even in the most humid bathrooms.

The IP24 electrical protection rating allows Yoga to be installed in bathrooms in compliance with electrical regulations.

DESIGNED WITH ATTENTION TO EVERY DETAIL

Beautiful, elegant, slim, and compact. Yoga's design is inspired by soft, pleasing lines. It's the size of a traditional towel warmer and is ideal for bathrooms and laundry rooms. It's also perfect for back-of-door use, measuring just 9 cm deep.

TOWEL HOLDER BAR, ALSO HEATED
Towel rails, square or rounded, can be added to Yoga, the latter also available in a heated version to keep towels always warm, both in summer and winter.
